DWV (Drain, Waste, Vent) Hanger – Fig. 237

For more product information please call (631) 665-9300

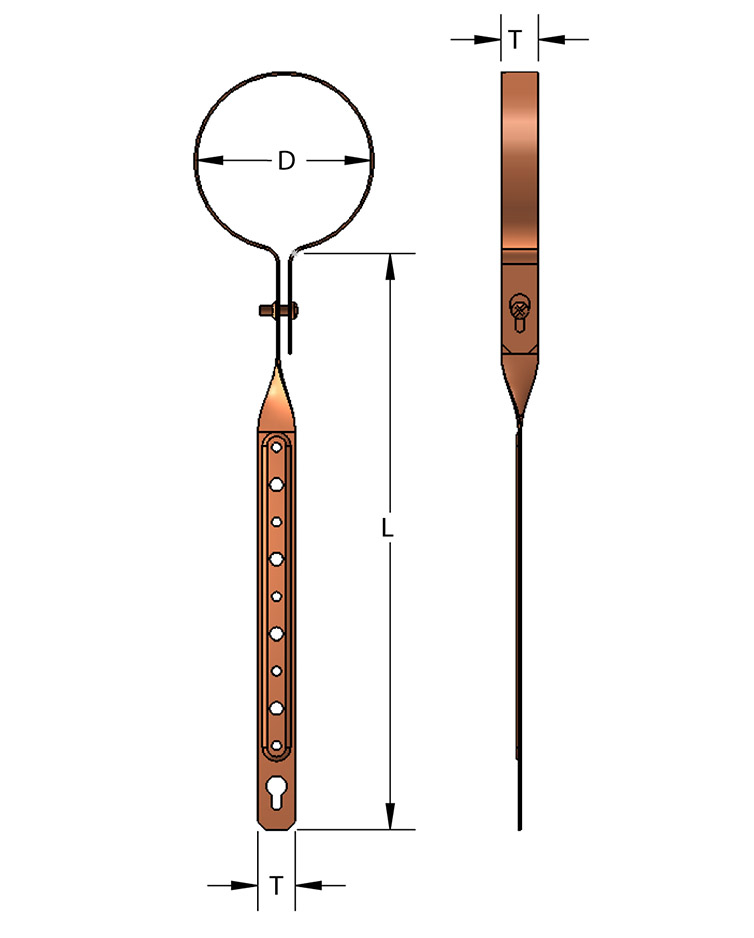

Diagram Notes

Click the image to make it larger

Material

Pre-galvanized carbon steel, pre-copper plated carbon steel.

Finish

Pre-galvanized (237G), copper plated (237CT) or plastic coated (237PC).

Service

Designed for the support of PVC or ABS DWV pipe from wood joists. Evenly spaced holes allow for proper pipe pitch.

Approvals

There are no approval options for this product.

Ordering

Specify tube size, length and figure number.

Notes

FIG. 237CT copper plated DWV hangers are NOT designed for copper DWV pipe.

  • Pipe Size
    1 1/2
    2
    3
    4
  • D Tube OD
    1 9/10
    2 3/8
    3 1/2
    4 1/2
  • T
    3/4
    3/4
    3/4
    3/4
  • L
    12
    12
    12
    12
  • Wgt Each (lbs)
    0.20
    0.22
    0.24
    0.26
