One Hole Pipe Strap, 304 Stainless Steel, IDS – Fig. 233SS

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

304 stainless steel.

Finish

There are no finishing options for this product.

Service

Designed to support schedule 40/80 steel sized piping or tubing sizes in a horizontal position from sides of structural member. Fastener hole may be above or below the pipe.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size or OD tube size, and figure number.

Notes

Stainless steel hangers are recommended for applications where protection from corrosive environments is needed.

  • Pipe Size
    1/4 OD
    1/4
    3/8 OD
    3/8
    1/2 OD
    1/2
    3/4 OD
    3/4
    1 OD
    1
    1 1/4
    1 1/2
    2
  • Pipe OD
    0.250
    0.540
    0.375
    0.675
    0.500
    0.840
    0.750
    1.050
    1.000
    1.315
    1.660
    1.900
    2.375
  • Material Size
    16ga x 7/8
    16ga x 7/8
    16ga x 7/8
    16ga x 7/8
    13ga x 3/4
    13ga x 3/4
    13ga x 3/4
    13ga x 3/4
    13ga x 3/4
    13ga x 3/4
    11ga x 1
    11ga x 1
    11ga x 1

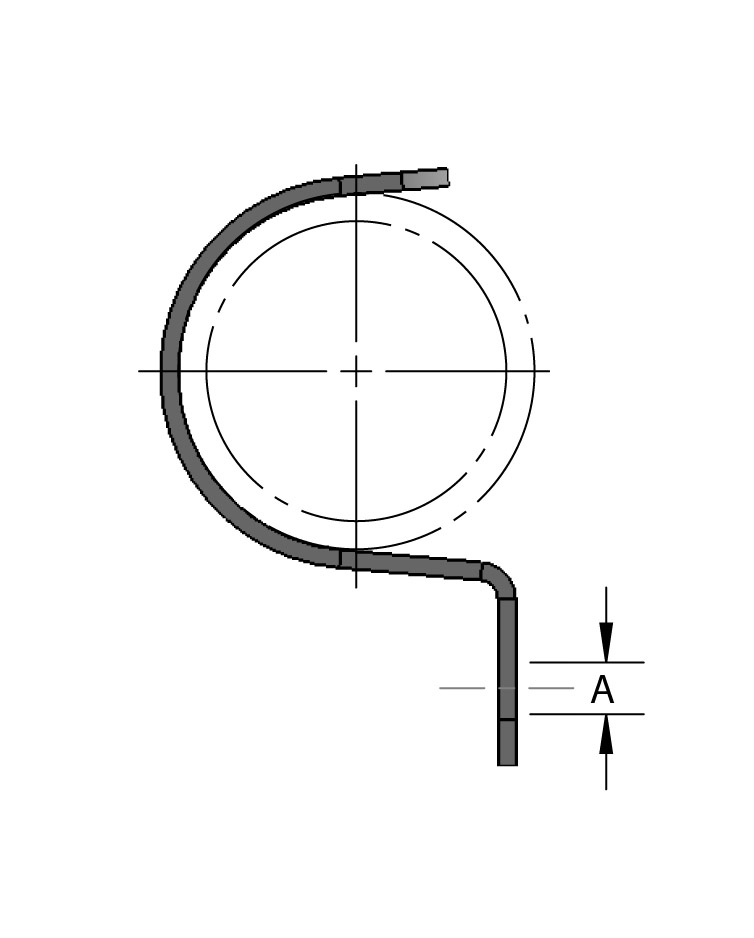

  • Hole Size A
    9/32
    9/32
    9/32
    9/32
    9/32
    9/32
    9/32
    9/32
    9/32
    9/32
    5/16
    5/16
    5/16
  • Wgt Each (lbs)
    0.015
    0.030
    0.015
    0.030
    0.035
    0.040
    0.045
    0.055
    0.055
    0.065
    0.145
    0.170
    0.195
