One Hole Pipe Strap – Fig. 233

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Pre-galvanized carbon steel.

Finish

Pre-galvanized.

Service

Designed to support schedule 40/80 steel sized piping or sizes in a horizontal position from sides of structural member. Fastener hole may be above or below the pipe.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size and figure number.

Notes

There are no notes for this product.

Pipe Size

1/4
3/8
1/2

3/4
1
1 1/4

1 1/2
2
Pipe OD

0.540
0.675
0.840

1.050
1.315
1.660

1.900
2.375
Material Size

16ga x 1/2
13ga x 3/4
13ga x 3/4

13ga x 3/4
11ga x 1
11ga x 1

11ga x 1
11ga x 1

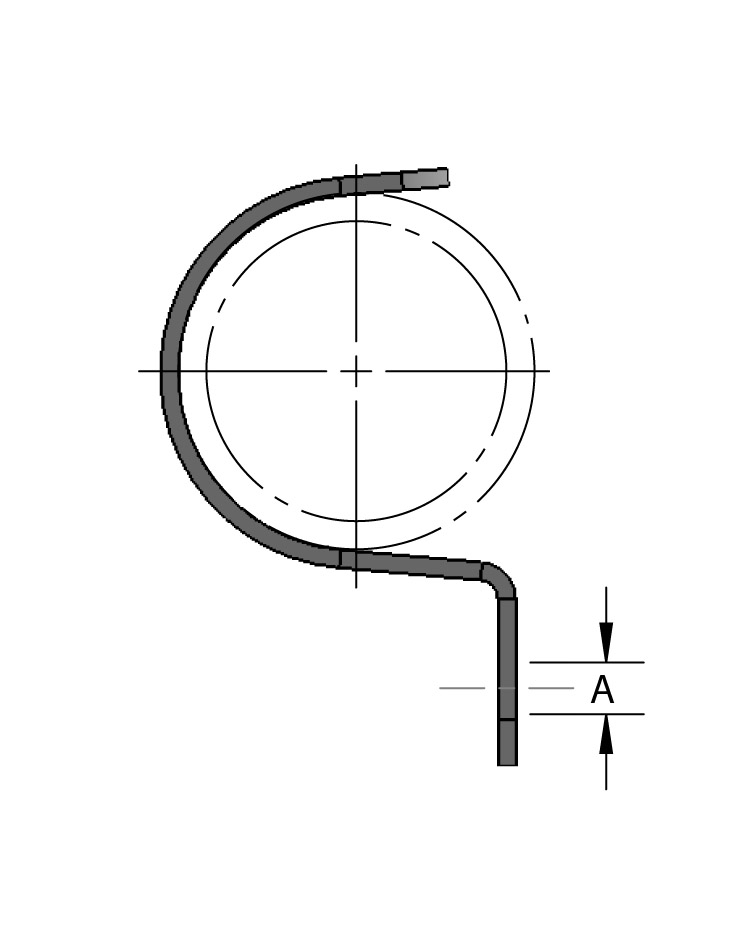

Hole Size A

9/32
9/32
9/32

9/32
13/32
13/32

13/32
21/32
Wgt Each (lbs)

0.02
0.04
0.05

0.06
0.06
0.17

0.18
0.36

One Hole Pipe Strap – Fig. 233

Pipe Size

Pipe OD

Material Size

Hole Size A

Wgt Each (lbs)
