Two Hole Pipe Strap – Fig. 231

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Pre-galvanized carbon steel.

Finish

Pre-galvanized.

Service

Designed as a light duty support of schedule 40/80 sized pipe. Attaches directly to horizontal or vertical structural member.

Approvals

There are no approval options for this product.

Ordering

Specify tube size and figure number.

Notes

Available in domestic.

Pipe Size

1/4
3/8
1/2

3/4
1
1 1/4

1 1/2
2
2 1/2

3
4
6
Pipe OD

0.540
0.675
0.840

1.050
1.315
1.660

1.900
2.375
2.875

3.500
4.500
6.625
Material Size

22ga x 3/4
22ga x 3/4
18ga x 3/4

18ga x 3/4
16ga x 1
16ga x 1

15ga x 1
14ga x 1
12ga x 1

12ga x 1
12ga x 1
12ga x 1 1/4

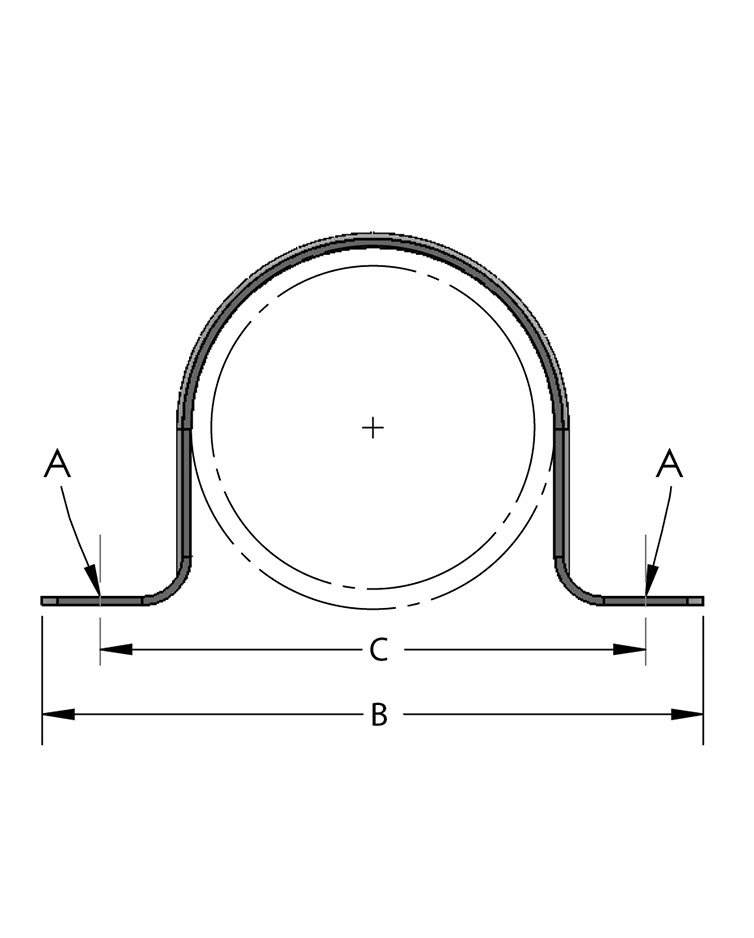

Hole Size A

7/32
7/32
7/32

7/32
9/32
9/32

9/32
9/32
11/32

11/32
11/32
11/32
B

2 1/8
2 1/4
2 5/8

2 3/4
3 3/8
4 1/4

4 3/8
5
6 1/4

5 3/4
6 7/8
9 5/8
C

1 1/4
1 1/2
1 7/8

2
2 5/8
3 1/4

3 3/8
4
4 3/4

5 3/4
6 7/8
9 5/8
Wgt Each (lbs)

0.01
0.03
0.04

0.07
0.09
0.10

0.13
0.18
0.26

0.32
0.40
0.75
