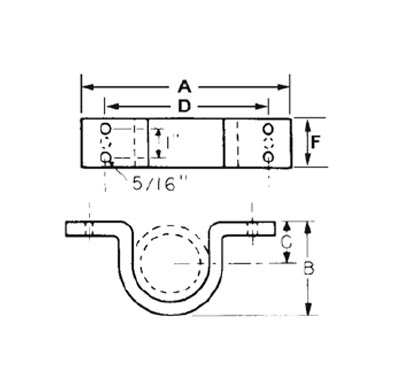

Short Clip – Fig. 180

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain or electro-galvanized.

Service

Designed to support pipe close to ceiling or wall.

Approvals

There are no approval options for this product.

Ordering

Specify size, figure number and finish.

Notes

Available in stainless steel and hot-dip galvanized. Sizes 1/2" to 2" are furnished with two screw holes.Sizes 21/2" to 4" are furnished with four screw holes.
* Radius edge 1/2" to 2" with 2 holes. * Square edge 21/2" to 4" with four holes.

Pipe Size

1/2
3/4
1

1 1/4
1 1/2
2

2 1/2
3
3 1/2

4
Pipe OD

0.840
1.050
1.315

1.660
1.900
2.375

2.875
3.500
4.000

4.500
Material

11ga
11ga
11ga

11ga
8ga
8ga

8ga
8ga
8ga

8ga
A

3 3/16
3 1/2
4

4 7/16
4 13/16
5 1/2

6 3/8
7 1/8
7 3/8

7 3/4
B

1 1/8
1 3/8
1 5/8

1 7/8
2 3/16
2 3/4

3 1/8
3 3/4
4 5/16

4 13/16
C

9/16
5/8
3/4

15/16
1 1/8
1 3/8

1 5/8
1 15/16
2 3/16

2 7/16
D

2 1/16
2 3/8
2 7/8

3 5/16
3 11/16
4 3/8

5 3/8
6 1/8
6 3/8

6 3/4
F

1 1/4
1 1/4
1 1/4

1 1/4
1 1/4
1 1/4

1 3/4
1 3/4
1 3/4

1 3/4
Wgt Each (lbs)

0.165
0.190
0.235

0.260
0.400
0.490

0.910
0.950
1.050

1.160
Max Rec Load (lbs)

300
300
300

300
300
300

400
400
400

400

Short Clip – Fig. 180

Pipe Size

Pipe OD

Material

A

B

C

D

F

Wgt Each (lbs)

Max Rec Load (lbs)
