Standard U-Bolt with 4 Hex Nuts – Fig. 137

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for support or guide of heavy loads.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 24), A-A-1192 A (Type# 24), and MSS SP-58 and SP-69 (Type# 24).

Ordering

Specify pipe size, figure number and finish. Sizes 1/2" to 1" can be furnished with 3/8" rod size.

Notes

U-bolts with longer tangents or longer threads are available. Also available with plastic coating. Available in domestic.

  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
    10
    12
    14
    16
    18
    20
    24
  • Pipe OD
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
    5.563
    6.625
    8.625
    10.750
    12.750
    14.000
    16.000
    18.000
    20.000
    24.000

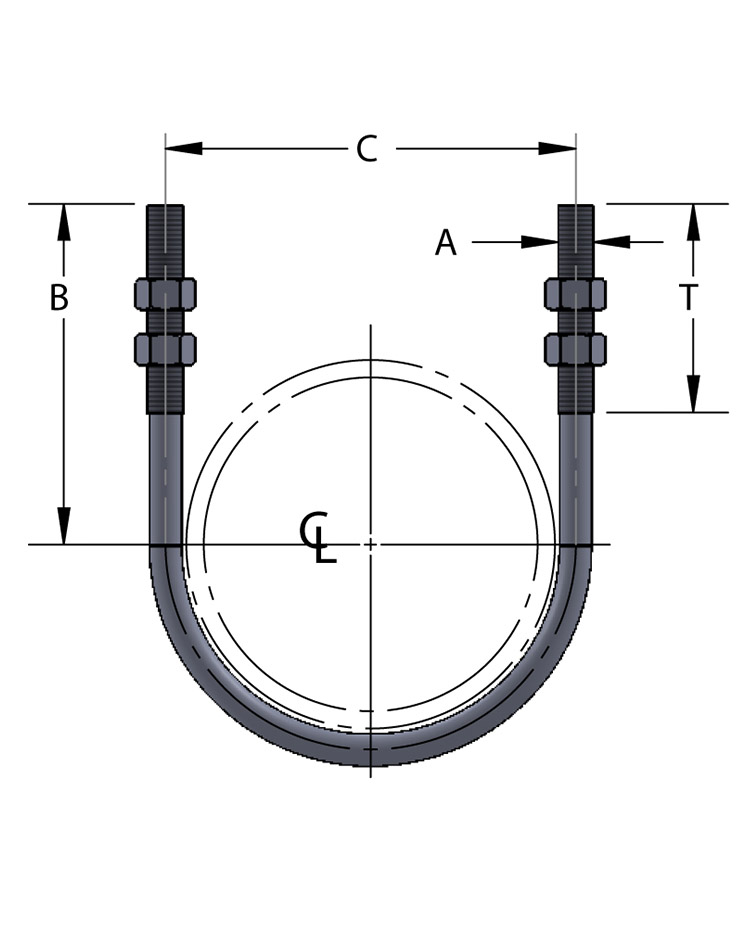

  • A
    1/4-20
    1/4-20
    1/4-20
    3/8-16
    3/8-16
    3/8-16
    1/2-13
    1/2-13
    1/2-13
    1/2-13
    1/2-13
    5/8-11
    5/8-11
    3/4-10
    7/8-9
    7/8-9
    7/8-9
    1-8
    1-8
    1-8
  • B
    2 3/4
    2 3/4
    2 3/4
    2 7/8
    3
    3 1/4
    3 3/4
    4
    4 1/4
    4 1/2
    5
    6 1/8
    7 1/8
    8 3/8
    9 5/8
    10 1/4
    11 1/4
    12 5/8
    13 5/8
    15 5/8
  • C
    1 3/16
    1 3/8
    1 5/8
    2 1/16
    2 3/8
    2 13/16
    3 7/16
    4 1/16
    4 9/16
    5 1/16
    6 1/8
    7 3/8
    9 3/8
    11 5/8
    13 3/4
    15
    17
    19 1/8
    21 1/8
    25 1/8
  • T
    2 3/8
    2 3/8
    2 3/8
    2 3/8
    2 1/2
    2 1/2
    3
    3
    3
    3
    3
    3 3/4
    3 3/4
    4
    4 1/4
    4 3/4
    4 3/4
    4 3/4
    4 3/4
    4 3/4
  • Wgt Each (lbs)
    0.10
    0.10
    0.10
    0.26
    0.28
    0.32
    0.70
    0.76
    0.80
    0.86
    1.00
    1.98
    2.26
    3.94
    6.40
    8.30
    9.20
    13.50
    14.60
    16.90
  • Max Rec Load (lbs)
    485
    485
    485
    1220
    1220
    1220
    2260
    2260
    2260
    2260
    2260
    3620
    3620
    5420
    7540
    7540
    7540
    9920
    9920
    9920
