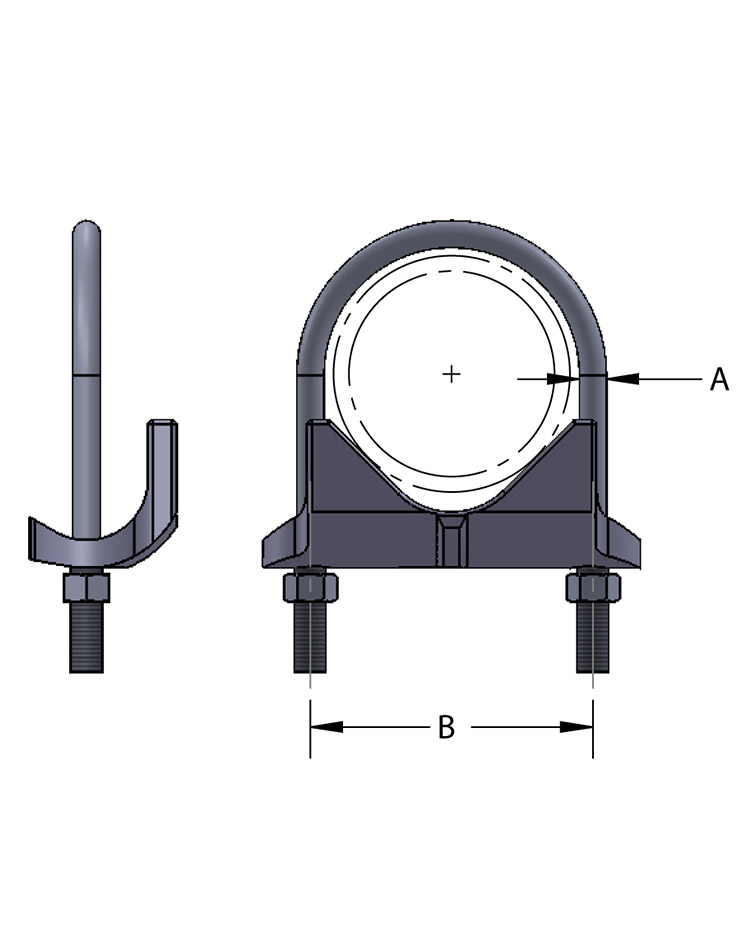

Right Angle Clamp – Fig. 136

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Cast iron with carbon steel u-bolt and nuts.

Finish

Electro-galvanized.

Service

Designed for anchoring pipe or conduit at a right angle to structural members.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size and figure number.

Notes

There are no notes for this product.

  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
  • Pipe OD
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
  • A
    5/16
    5/16
    5/16
    5/16
    5/16
    3/8
    3/8
    3/8
    3/8
    3/8
  • B
    2
    2 1/8
    2 3/8
    3
    3 1/2
    4
    4 3/4
    5
    5 1/2
    6
  • Wgt Each (lbs)
    0.40
    0.42
    0.48
    0.55
    0.57
    0.89
    1.10
    1.14
    1.30
    1.40
