Milford Hanger, Copper Tube Size – Fig. 131CT

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagrammatic notes for this product.

Download Submittal
Material

Carbon steel.

Finish

Copper epoxy coated (COPPER-GARD)

Service

Designed for the support of copper tube supply lines. Attaches to wood members.

Approvals

There are no approval options for this product.

Ordering

Specify tube size, length and figure number.

Notes

There are no notes for this product.

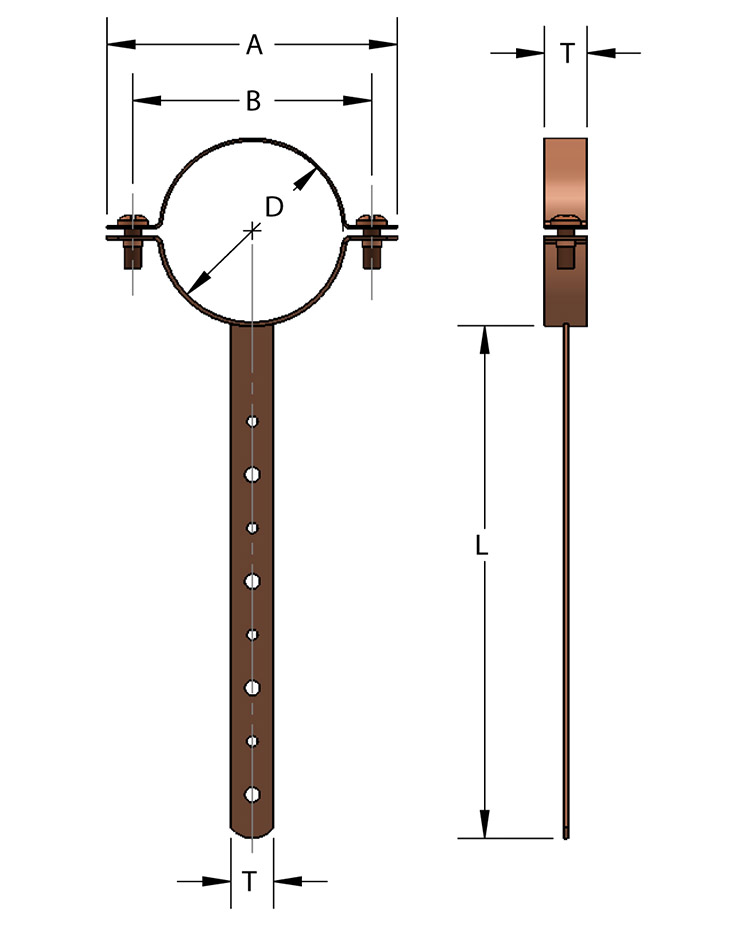

  • Tube Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
  • D Tube OD
    5/8
    7/8
    1 1/8
    1 3/8
    1 5/8
    1 1/8
  • A
    2 3/8
    2 3/8
    2 7/16
    2 11/16
    3 1/16
    3 7/8
  • B
    1 9/16
    1 3/4
    1 7/8
    2 1/8
    2 7/16
    2 13/16
  • T
    1/2
    1/2
    1/2
    1/2
    1/2
    1/2
  • L (6” or 12”)
    6” or 12”
    6” or 12”
    6” or 12”
    6” or 12”
    6” or 12”
    6” or 12”
Wgt Each (lbs)
  • 6”
    0.08
    0.08
    0.08
    0.10
    0.10
    0.10
  • 12”
    0.12
    0.12
    0.12
    0.14
    0.14
    0.14
