One Hole Clamp – Fig. 126

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Cast iron, also available in 304 and 316 stainless steel.

Finish

Electro-galvanized.

Service

Designed for the support of conduit, cable or pipe on walls or sides of beams. Not recommended for horizontal use on ceilings or bottom of beams.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size and figure number.

Notes

There are not notes for this product.

  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    4
  • Pipe/Cable/Conduit OD
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.500

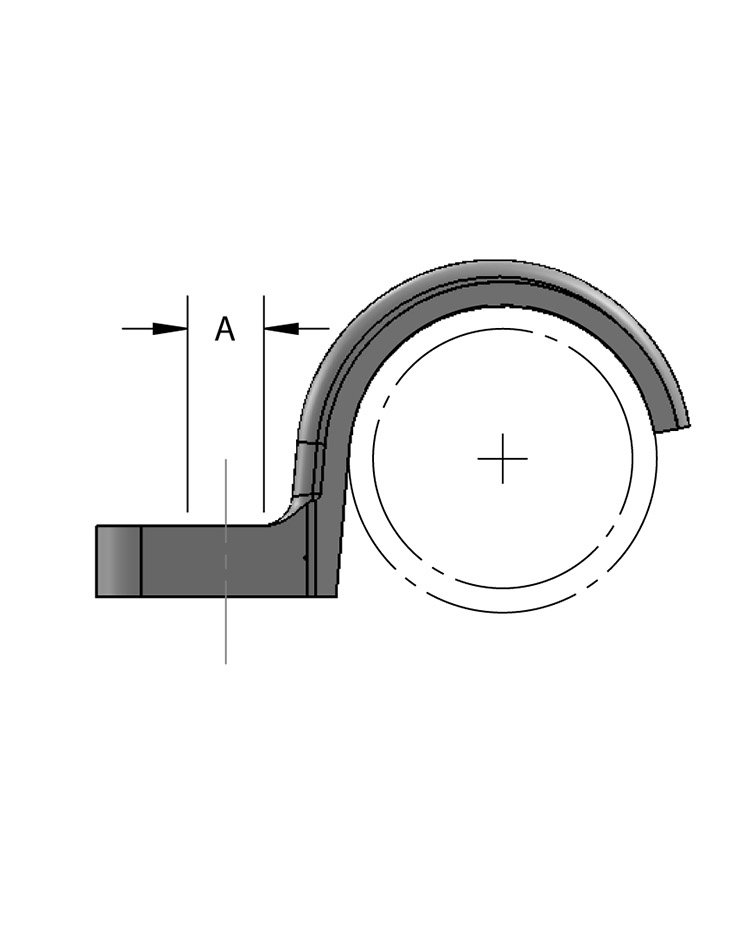

  • Hole Dia A
    5/16
    5/16
    5/16
    3/8
    7/16
    7/16
    11/16
    11/16
    3/4
  • Bolt/Screw
    1/4
    1/4
    1/4
    1/4
    3/8
    3/8
    5/8
    5/8
    5/8
  • Wgt Each (lbs)
    0.04
    0.05
    0.09
    0.12
    0.16
    0.25
    0.49
    0.82
    1.30
