Industrial Threaded Products
Seismic Attachments
-
Fig. 015
(631)665-9300

fig1001

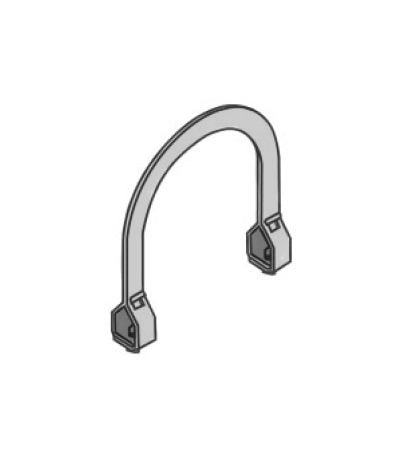

Large Sway Brace Pipe Attachment – Fig. 015

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon Steel, also available in 304 and 316 stainless steel

Finish

Plain or Electro-Galvanized.

Service

For bracing pipe against sway and seismic disturbance.

Approvals

Underwriters Laboratories Listed in the USA (UL) and Canada (cUL). Approved by Factory Mutual Engineering (FM). Approved by the State of California Office of Statewide Health Planning and Development (OSHPD).

Ordering

Indicate pipe size to be braced, followed by pipe size used for bracing, figure number, and finish.

Notes

The cross reference number for this product is Fig 1001

Click Here for cross reference page for this product
domesticdomestic domestic domestic
  • Pipe Size
    in (mm)
    2-1/2 (65)
    3 (80)
    4 (100)
    6 (150)
    8 (200)
Weight each
1” Brace Pipe
1-1/4” Brace Pipe
  • Lbs
    1.31
    1.40
    1.53
    1.81
    2.07
  • (Kg)
    0.59
    0.64
    0.69
    0.82
    0.94
  • Lbs
    1.49
    1.57
    1.70
    1.98
    2.24
  • (Kg)
    0.68
    0.71
    0.77
    0.90
    1.02
Brace Angle From Vertical
30-44 degrees
45-59 degrees
60-74 degrees
75-90 degrees
  • Lbs
    1020
    1080
    1020
    640
    570
  • (kN)
    4.53
    4.80
    4.53
    2.84
    2.53
  • Lbs
    1440
    1530
    1450
    900
    810
  • (kN)
    6.40
    6.80
    6.44
    4.00
    3.60
  • Lbs
    1770
    1870
    1770
    1110
    990
  • (kN)
    7.87
    8.31
    7.87
    4.93
    4.40
  • Lbs
    1970
    2090
    1980
    1240
    1100
  • (kN)
    8.76
    9.29
    8.80
    5.51
    4.89
Chart Notes (Above)

-For Sch 10, Sch 40 Pipe, & Flow Pipe

- Brace: 1” Thru 2” Sch 40 Pipe (GB/T 3091, EN 10255H, or JISG 3454)

- FM Maximum Design Load

Chart Notes (Below)

- UL Maximum Design Load

* For pipe sizes Sch 10 & 40

  • Pipe Size in (mm) *
    2-1/2 (65)
    3 (80)
    4 (100)
    6 (150)
  • Lbs
    1000
    1000
    1000
    1600
  • kN
    4.45
    4.45
    4.45
    7.12
