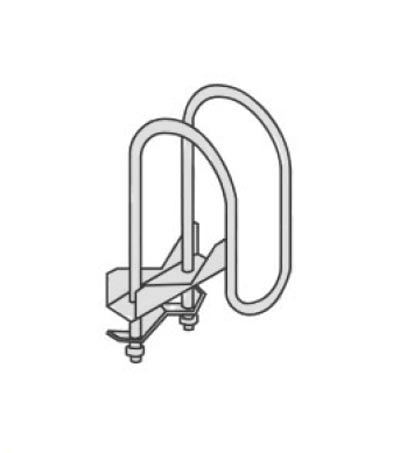

Sway Brace Pipe Attachment – Fig. 010

For more product information please call (631) 665-9300
Diagram Notes

Max. Horizontal Design Load (UL) – 1” (25mm) through 2” (50mm) pipe size 655 lbs. (2.91kN)

Material

Carbon Steel, also available in 304 and 316 stainless steel

Finish

Plain

Service

A restraint device intended for lateral bracing.

Approvals

Underwriters Laboratories Listed in the USA (UL) and Canada (cUL). Approved for use with Allied Dyna Flow sprinkler pipe up to 2” as restraint device. Maximum horizontal design load is 655 lbs. (2.91kN) Torque requirement is 6-8ft./lbs. (8-10Nm). Approved by the State of California Office of Statewide Health Planning and Development (OSHPG).

Ordering

Order first by pipe size to be braced, followed by pipe size used for bracing, figure number, and finish.

Notes

The cross reference number for this product is Fig 010

Click Here for cross reference page for this product
domesticdomestic domestic domestic
  • Pipe Size *
    in (mm)
    1 (25) **
    1-1/4 (32)
    1-1/2 (40)
    2 (50)
    2-1/2 (65)
    3 (80)
    4 (100)
    6 (150)
Weight each
1” Brace Pipe
1-1/4” Brace Pipe
  • Lbs
    0.71
    0.76
    0.79
    0.84
    0.90
    0.98
    1.10
    N/A
  • (Kg)
    0.32
    0.34
    0.36
    0.38
    0.41
    0.44
    0.50
    N/A
  • Lbs
    0.75
    0.79
    0.82
    0.88
    0.94
    1.02
    1.14
    1.40
  • (Kg)
    0.34
    0.36
    0.37
    0.40
    0.43
    0.46
    0.52
    0.63
  • Lbs
    (kN)
    1000 (4.45)
    1000 (4.45)
    1000 (4.45)
    1000 (4.45)
    1000 (4.45)
    1000 (4.45)
    1000 (4.45)
    1600 (7.12)
Chart Notes

- UL Maximum Design Load

* For pipe size Sch 40

** Restraint only

  • Pipe Size *
    in (mm)
    1 (25)
    1-1/4 (32)
    1-1/2 (40)
    2 (50)
    2-1/2 (65)
    3 (80)
    4 (100)
    6 (150) **
FM Maximum Design Load
30 – 44 degrees
45 – 59 degrees
60 – 74 degrees
75 – 90 degrees
  • Lbs
    340
    350
    290
    390
    440
    470
    430
    250
  • (kN)
    1.51
    1.55
    1.28
    1.73
    1.95
    2.09
    1.91
    1.11
  • Lbs
    480
    500
    420
    550
    620
    660
    610
    350
  • (kN)
    2.13
    2.22
    1.86
    2.44
    2.75
    2.93
    2.71
    1.55
  • Lbs
    590
    610
    510
    670
    760
    810
    750
    430
  • (kN)
    2.62
    2.71
    2.26
    2.98
    3.38
    3.33
    3.33
    1.91
  • Lbs
    660
    680
    570
    750
    850
    910
    840
    480
  • (kN)
    2.93
    3.02
    2.53
    3.33
    3.78
    4.04
    3.73
    2.13
Chart Notes

- Brace Pipes 1” or 1- 1/4” (GB/T3091, EN10255H, or JISG3454)

* For pipe sizes Sch 10 and Sch 40

** 1-1/4” brace size only
