Epoxy Coated Copper Tube Split Ring Extension Hanger

Epoxy Coated (Copper Gard) Copper Tube Split Ring Extension Hanger – Fig. 41CT

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Cast iron.

Finish

Copper epoxy coated (COPPER-GARD). COPPER-GARD products offer superior corrosion protection due to the epoxy coating over electro-galvanized material. The alternative copper plating that has been done historically identifies the product and is not intended for protection. Refer to MSS SP58, 13.3.

Service

Designed for the suspension of non-insulated stationary copper tubing, horizontally or vertically.

Approvals

Complies with Federal Specification WWH-171-E (Type# 25), A-A-1192A (Type# 12), Manufacturers' Standardization Society SP-58 and MSS SP-69 (Type# 12).

Ordering

Specify tube size and figure number.

Notes

There are no notes for this product.

  • Tube Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    1 1/2
    2
    2 1/2
    3
    4
  • Tube OD
    0.625
    0.875
    1.125
    1.375
    1.625
    2.125
    1.625
    2.125
    2.625
    3.125
    4.125
  • Screw
    10-24
    10-24
    10-24
    10-24
    10-24
    10-24
    10-24
    10-24
    1/4-20
    1/4-20
    1/4-20

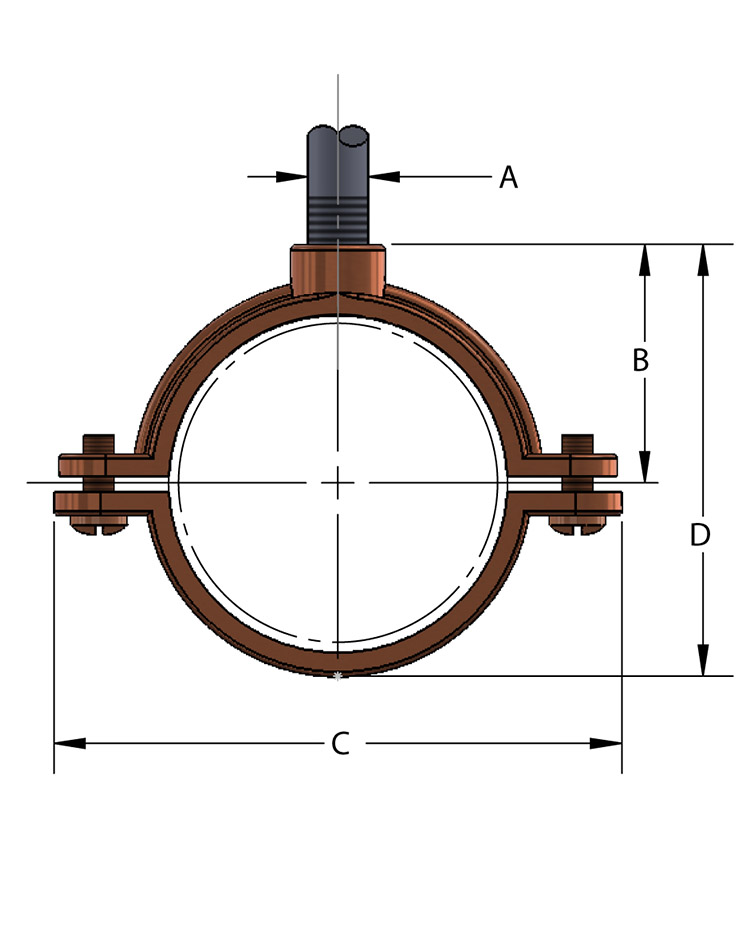

  • A
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    1/2-13
    1/2-13
    1/2-13
  • B
    11/16
    13/16
    15/16
    1 1/16
    1 3/16
    1 7/16
    1 3/16
    1 7/16
    1 7/8
    2 1/8
    2 5/8
  • C
    1 7/8
    2 1/4
    2 1/2
    12 7/8
    3
    3 1/2
    3 1 1/6
    3 5/8
    4 15/16
    5 1/2
    6 5/8
  • D
    1 1/8
    1 3/8
    1 5/8
    1 7/8
    2 3/16
    2 11/16
    2 3/16
    2 11/16
    2 7/16
    4 1/16
    5 1/16
  • Wgt Each (lbs)
    0.087
    0.096
    0.128
    0.141
    0.179
    0.229
    0.172
    0.233
    0.449
    0.663
    0.753
  • Max REC Load (lbs)
    180
    180
    180
    180
    180
    180
    180
    180
    300
    300
    300
