Split Ring Extension Hanger

Split Ring Extension Hanger – Fig. 41

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Cast iron.

Finish

Plain, electro-galvanized.

Service

Designed for the suspension of non-insulated stationary pipe lines horizontally and vertically.

Approvals

Complies with Federal Specification WWH-171-E (Type# 25), A-A-1192A (Type# 12), Manufacturers' Standardization Society SP-58 and MSS SP-69 (Type# 12).

Ordering

Specify pipe size, figure number and finish.

Notes

Split ring extension hangers with hinged design available in 3/8" - 4" (41H).

  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2
    2 1/2
    3
    4
  • Pipe OD
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.375
    2.875
    3.500
    4.500
  • Screw
    10-24
    10-24
    10-24
    10-24
    10-24
    10-24
    10-24
    1/4
    1/4
    1/4

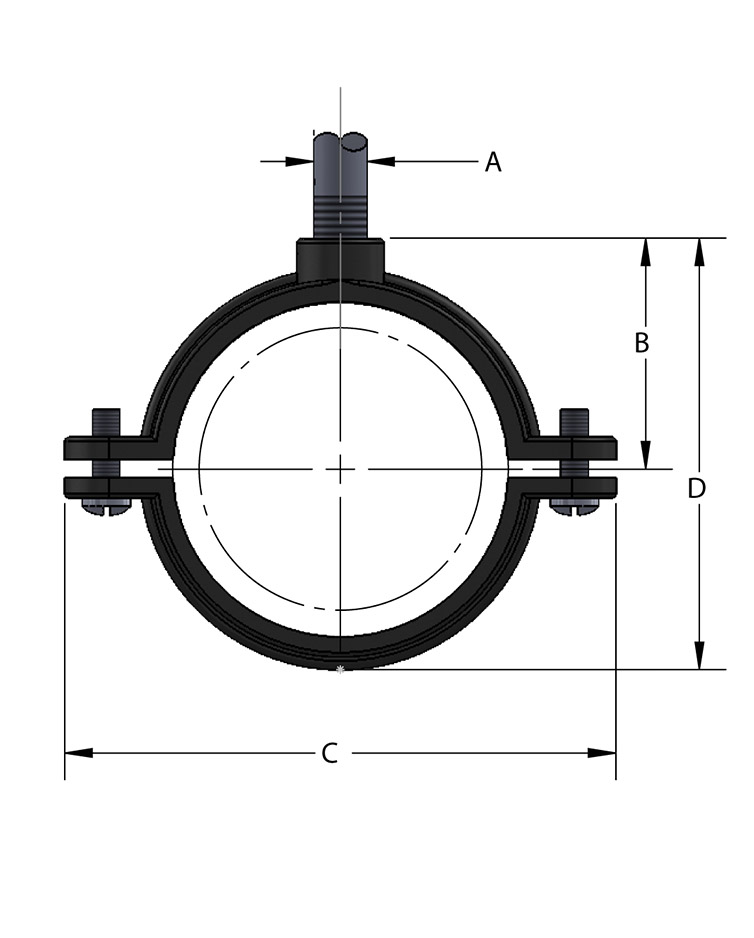

  • A
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    3/8-16
    1/2-13
    1/2-13
    1/2-13
  • B
    3/4
    7/8
    1 1/8
    1 5/16
    1 7/16
    1 5/8
    1 5/8
    2 1/8
    2 1/2
    2 7/8
  • C
    2 1/8
    2 1/2
    2 3/4
    3 3/16
    3 3/8
    3 15/16
    3 15/16
    5 3/16
    5 11/16
    6 3/4
  • D
    1 3/16
    1 9/16
    2
    2 3/8
    2 5/8
    3 1/16
    3 1/16
    3 13/16
    4 5/8
    5 9/16
  • Wgt Each (lbs)
    0.098
    0.112
    0.147
    0.181
    0.214
    0.300
    0.299
    0.583
    0.713
    1.019
  • Max REC Load (lbs)
    180
    180
    180
    180
    180
    180
    180
    300
    300
    300
