Copper Band Hanger

Copper Band Hanger – Fig 31CT

For more product information please call (631) 665-9300

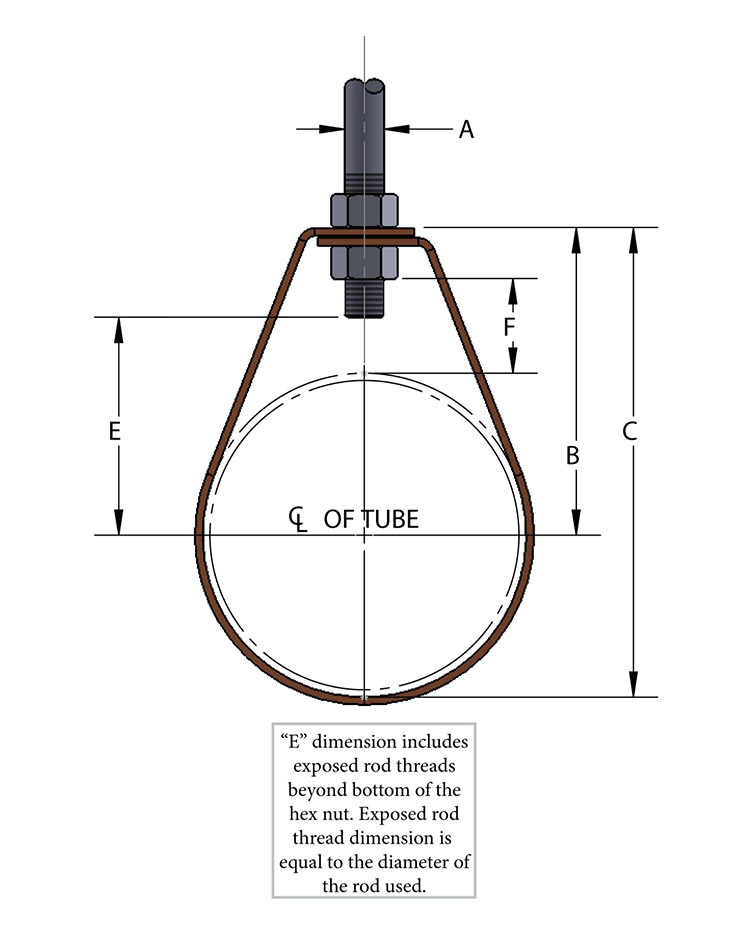

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Material

Carbon steel.

Finish

Copper plated (31CT) or Copper epoxy coated COPPER- GARD (31CTI). COPPER-GARD products offer superior cor- rosion protection due to the epoxy coating over electro-galva- nized steel. The alternative, copper plating that has been done historically, is for identification purposes only and is not intended for corrosion protection. Refer to MSS-SP58 13.3.

Service

Designed for the suspension of non-insulated stationary pipe.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 7), A-A-1192 A (Type# 7), and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 7).

Ordering

Specify tube size, figure number and finish.

Notes

Upper locknut must be tightened securely to assure proper hanger performance.

  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
  • Tube OD
    0.625
    0.875
    1.125
    1.375
    1.625
    2.125
    2.625
    3.125
    3.625
    4.125
    5.125
    6.125
  • Material Size
    16ga x 7/8
    16ga x 7/8
    16ga x 7/8
    16ga x 7/8
    16ga x 7/8
    16ga x 7/8
    14ga x 1
    14ga x 1
    13ga x 1
    13ga x 1
    11ga x 1
    11ga x 1
  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    1/2
    1/2
    1/2
  • B
    2 5/16
    2 1/8
    2
    2 1/16
    2 5/16
    2 5/8
    3 3/16
    3 1/2
    3 13/16
    4
    4 15/16
    5 5/8
  • C
    2 5/8
    2 9/16
    2 9/16
    2 13/16
    3 1/8
    3 11/16
    4 1/2
    5
    5 9/8
    6 1/2
    7 1/2
    8 11/16
  • E
    1 1/2
    1 5/16
    1 3/16
    1 1/4
    1 1/2
    1 13/16
    2 1/16
    2 3/8
    2 11/16
    2 7/8
    3 11/16
    4 11/16
  • F
    1 9/16
    1 1/4
    1
    15/16
    1 1/16
    1 1/8
    1 1/4
    1 5/16
    1 3/8
    1 5/16
    1 5/8
    1 7/8
  • Wgt Each (lbs)
    0.100
    0.100
    0.100
    0.120
    0.120
    0.140
    0.300
    0.320
    0.380
    0.440
    0.680
    0.840
  • Max REC Load (lbs)
    610
    610
    610
    610
    610
    610
    610
    970
    970
    1130
    1130
    1130
