Industrial Threaded Products
Hangers
-
Band & Swivel Hangers
-
Fig. 310NF
(631)665-9300

Adjustable Swivel Ring Hanger NFPA

“EM-LOK” Adjustable Swivel Ring Hanger, NFPA – Fig. 310NF

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Pre-galvanized carbon steel, Carbon Steel, also available in 304 and 316 stainless steel.

Finish

Pre-galvanized.

Service

Designed for the suspension of non-insulated stationary pipe lines. Typically used as a pipe support for sprinkler piping. Hanger is manufactured to use minumum rod sizes permitted by NFPA.

Approvals

U.L. - U.L.C. listed and FM approved (3/4"-8"). Complies with Federal Specification WW-H-171-E (Type# 10), A-A- 1192 A (Type# 10) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 10).

Ordering

Specify pipe size and figure number.

Notes

There are no notes for this product.

53a846679c3193af1f1ab2d1_domestic_icons_03.jpg 53a846f25b6bda523044d9ce_domestic_icons_05.jpg 53a847089c3193af1f1ab2e1_domestic_icons_06.jpg
  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
    10
  • Pipe OD
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
    5.563
    6.625
    8.625
    10.750
  • Material Size
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    14ga x 3/4
    14ga x 3/4
    14ga x 3/4
    14ga x 3/4
    13ga x 3/4
    12ga x 3/4
    11ga x 1
    11ga x 1 1/4

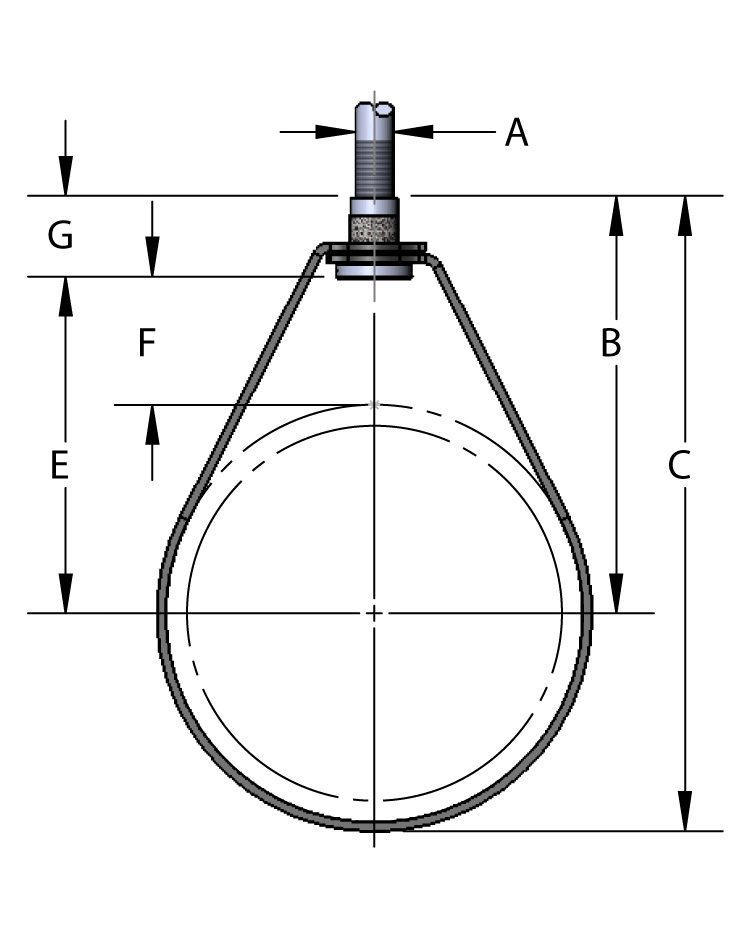

  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    1/2
  • B
    2 1/2
     2 7/16
    2 5/8
    2 9/16
    2 11/16
    3 3/8
    3 7/8
    4 1/2
    4 7/8
    5
    5 3/4
    6 3/4
    7 7/8
    9 11/16
  • C
    2 7/8
    2 15/16
    3 1/4
    3 3/8
    3 5/8
    4 1/2
    5 3/8
    6 1/4
    6 7/8
    7 1/4
    8 1/2
    10 1/8
    12 1/4
    15 1/16
  • E
    1 5/8
    1 9/16
    1 3/4
    1 11/16
    1 13/16
    2 1/2
    3 1/8
    3 5/8
    4
    4 1/8
    4 1/4
    5 1/8
    7
    8 5/8
  • F
    1 3/16
    1 1/16
    1 1/16
    7/8
    7/8
    1 5/16
    1 3/8
    1 5/8
    1 3/4
    1 5/8
    1 7/8
    2 1/8
    2 3/8
    3 1/4
  • G
    7/8
    7/8
    7/8
    7/8
    7/8
    7/8
    7/8
    7/8
    7/8
    7/8
    1 1/16
    1 1/16
    1 1/16
    1 1/16
  • Wgt Each (lbs)
    0.080
    0.080
    0.080
    0.100
    0.100
    0.120
    0.240
    0.280
    0.320
    0.320
    0.620
    0.650
    1.000
    1.675
  • Max REC Load (lbs)
    400
    400
    600
    600
    600
    600
    600
    600
    600
    1000
    1000
    1250
    1250
    1250
