Industrial Threaded Products
Hangers
-
Band & Swivel Hangers
-
Fig. 310G
(631)665-9300

Adjustable Swivel Ring Hanger

“EM-LOK” Adjustable Swivel Ring Hanger, Domestic – Fig. 310G

For more product information please call (631) 665-9300

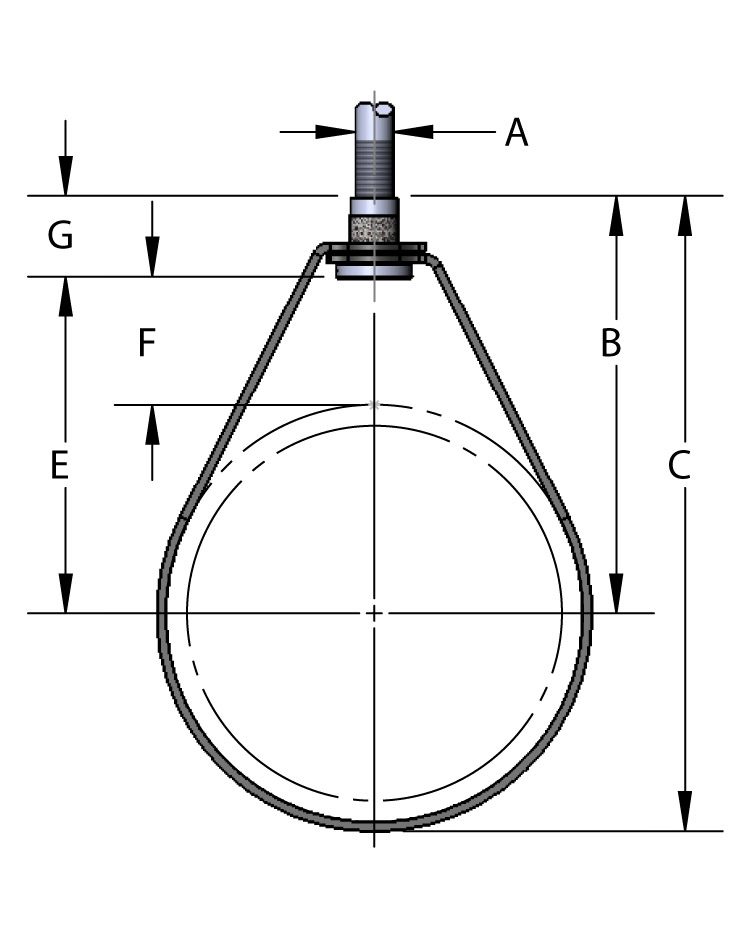

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Download Submittal
Material

Pre-galvanized carbon steel, also available in 304 and 316 stainless steel.

Finish

Pre-galvanized and plastic coated.

Service

Designed for the suspension of non-insulated stationary pipe lines. Plastic coating prevents pipe from coming in contact with hanger and is designed to reduce noise, vibration and prevent electrolysis between pipe and hanger.

Approvals

U.L. - U.L.C. listed and FM approved. Complies with Federal Specification WW-H-171-E (Type# 10), A-A-1192 A (Type# 10) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 10).

Ordering

Specify pipe size, figure number and finish.

Notes

There are no notes for this product.

53a846679c3193af1f1ab2d1_domestic_icons_03.jpg 53a846f25b6bda523044d9ce_domestic_icons_05.jpg 53a847089c3193af1f1ab2e1_domestic_icons_06.jpg
  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
  • Pipe OD
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
    5.563
    6.625
    8.625
  • Material Size
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    14ga x 3/4
    14ga x 3/4
    14ga x 3/4
    13ga x 3/4
    12ga x 1
    12ga x 1
    12ga x 1
  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    5/8
    5/8
    3/4
    3/4
  • B
    2 1/2
     2 7/16
    2 5/8
    2 9/16
    2 11/16
    3 3/8
    3 11/16
    4
    4 5/16
    4 5/16
    5 5/8
    6 11/16
    8 5/16
  • C
    2 7/8
    2 15/16
    3 1/4
    3 3/8
    3 5/8
    4 1/2
    5 1/8
    5 7/8
    6 5/8
    7 1/8
    8 1/2
    10 1/8
    12 7/8
  • E
    1 5/8
    1 9/16
    1 3/4
    1 11/16
    1 13/16
    2 1/2
    2 3/4
    3 1/8
    3 5/8
    3 7/8
    4 3/8
    5 5/16
    6 15/16
  • F
    1 3/16
    1 1/16
    1 1/16
    7/8
    7/8
    1 5/16
    1 1/4
    1 1/8
    1 1/2
    1 1/4
    1 3/8
    2
    2 5/8
  • G
    7/8
    7/8
    7/8
    7/8
    7/8
    7/8
    1 1/16
    1 1/16
    1 1/16
    1 1/8
    1 1/8
    1 3/8
    1 3/8
  • Wgt Each (lbs)
    0.080
    0.080
    0.080
    0.100
    0.100
    0.120
    0.320
    0.350
    0.390
    0.430
    0.650
    1.090
    1.240
  • Max REC Load (lbs)
    400
    400
    600
    600
    600
    600
    600
    600
    600
    1000
    1000
    1250
    1250
