Clevis Hanger with Extended Bottom

Clevis Hanger with Extended Bottom – Fig. 11X

For more product information please call (631) 665-9300

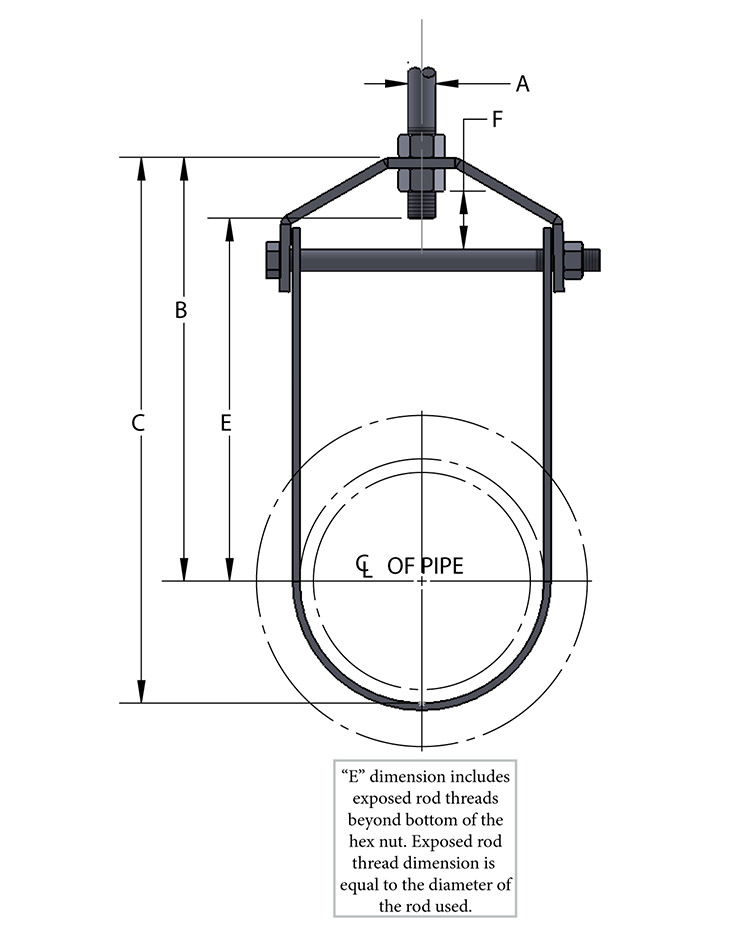

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for the suspension of non-insulated stationary pipe lines. The bottom section of the hanger is elongated to allow for easier installation of insulation.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 1), A-A-1192 A (Type# 1), and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 1).

Ordering

Specify pipe size, figure number and finish.

Notes

Upper locknut must be tightened securely to assure proper hanger performance.

  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    4
    5
    6
    8
    10
    12
  • Pipe OD
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.500
    5.563
    6.625
    8.625
    10.7500
    12.7500
  • Material Size Top
    13ga x 7/8
    13ga x 7/8
    13ga x 7/8
    13ga x 7/8
    12ga x 7/8
    12ga x 7/8
    9ga x 1 3/16
    9ga x 1 3/16
    8ga x 1 3/16
    4ga x 1 1/4
    3ga x 1 1/2
    3ga x 1 3/4
    3/8 x 1 3/4
    3/8 x 2
  • Material Size Bottom
    12ga x 7/8
    12ga x 7/8
    12ga x 7/8
    12ga x 7/8
    12ga x 7/8
    12ga x 7/8
    10ga x 1 3/16
    10ga x 1 3/16
    10ga x 1 3/16
    8ga x 1 1/4
    8ga x 1 1/2
    8ga x 1 3/4
    3ga x 1 3/4
    3ga x2
  • Bolt
    1/4
    1/4
    1/4
    1/4
    1/4
    1/4
    5/16
    5/16
    3/8
    1/2
    1/2
    5/8
    3/4
    3/4
  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    5/8
    5/8
    3/4
    3/4
    7/8
    7/8
  • B
    3 13/16
    3 3/4
    4 1/8
    4 7/16
    4 3/4
    7 1/4
    8 13/16
    9
    10 1/8
    9 7/8
    10 7/8
    12 1/4
    14 1/2
    15 7/8
  • C
    4 1/4
    4 3/16
    4 3/4
    5 1/4
    5 3/4
    8 7/16
    10 3/16
    10 3/4
    12 3/8
    12 9/16
    14 1/8
    16 9/16
    19 7/8
    22 1/4
  • E
    3
    2 15/16
    3 5/16
    3 5/8
    3 15/16
    3 5/16
    7 3/4
    7 15/16
    8 13/16
    8 7/16
    9 1/4
     10 7/16
    12 1/2
    13 7/8
  • F
    7/16
    7/16
    5/8
    7/8
    1 1/16
    1 1/4
    1 15/16
    1 3/4
    2 1/8
    1 7/16
    1 3/4
    1 7/8
    2 1/4
    2 13/16
  • Wgt Each (lbs)
    0.30
    0.33
    0,34
    0.39
    0.47
    0.65
    1.24
    1.34
    1.92
    2.58
    3.36
    5.08
    9.08
    11.54
  • Max REC Load (lbs)
    610
    610
    610
    610
    610
    610
    1130
    1130
    1430
    1430
    1940
    2000
    3600
    3800
