Industrial Threaded Products

Hangers

-

-

Fig. 11V

(631)665-9300

V Bottom Clevis Hanger

V Bottom Clevis Hanger – Fig. 11V

For more product information please call (631) 665-9300

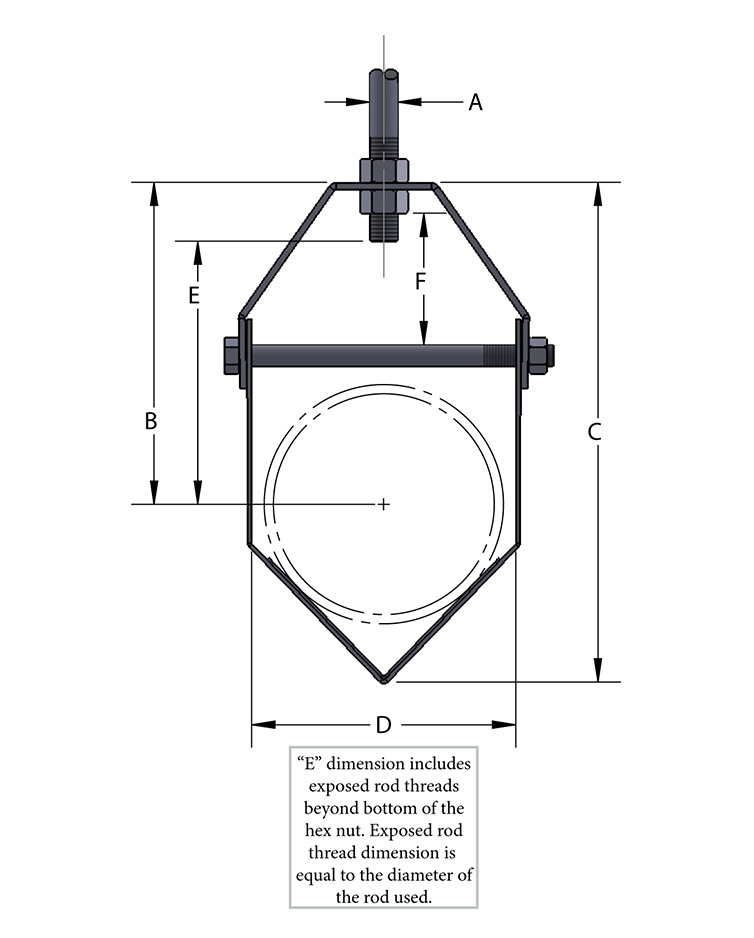

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for the suspension of flexible plastic pipe lines. Used in conjunction with figure #12 channel.

Approvals

There are no approval options for this product.

Ordering

Specify size number and figure number.

Notes

Hanger and channel sold separately. Upper locknut must be tightened securely to assure proper hanger performance.

Pipe Size

1/2
3/4
1

1 1/4
1 1/2
2

2 1/2
3
4
Size #

1
1
1

1
1
1

2
2
2
Material Size Top

14ga x 7/8
14ga x 7/8
14ga x 7/8

14ga x 7/8
14ga x 7/8
14ga x 7/8

11ga x 1 3/16
11ga x 1 3/16
11ga x 1 3/16
Material Size Bottom

16ga x 7/8
16ga x 7/8
16ga x 7/8

16ga x 7/8
16ga x 7/8
16ga x 7/8

14ga x 1 3/16
14ga x 1 3/16
14ga x 1 3/16
Bolt

1/4
1/4
1/4

1/4
1/4
1/4

3/8
3/8
3/8
A

3/8
3/8
3/8

3/8
3/8
3/8

1/2
1/2
1/2
B

5 3/16
5
4 7/8

4 5/8
4 7/16
4 1/8

6 13/16
6 2/8
5 11/16
C

5 7/8
5 7/8
5 7/8

5 7/8
5 7/8
5 7/8

8 15/16
8 15/16
8 15/16
D

2 9/16
2 9/16
2 9/16

2 9/16
2 9/16
2 9/16

4 11/16
4 11/16
4 11/16
E

4 7/16
4 1/4
4 1/16

3 7/8
3 11/16
3 3/8

5 3/4
5 5/16
4 1/2
F

1 1/4
1 1/4
1 1/4

1 1/4
1 1/4
1 1/4

2 3/8
2 3/8
2 3/8
Wgt Each (lbs)

0.30
0.30
0.30

0.30
0.30
0.30

0.96
0.96
0.96
Max REC Load (lbs)

150
150
150

150
150
150

250
250
250
