Flat Top Clevis Hanger

Flat Top Clevis Hanger – Fig. 11F

For more product information please call (631) 665-9300

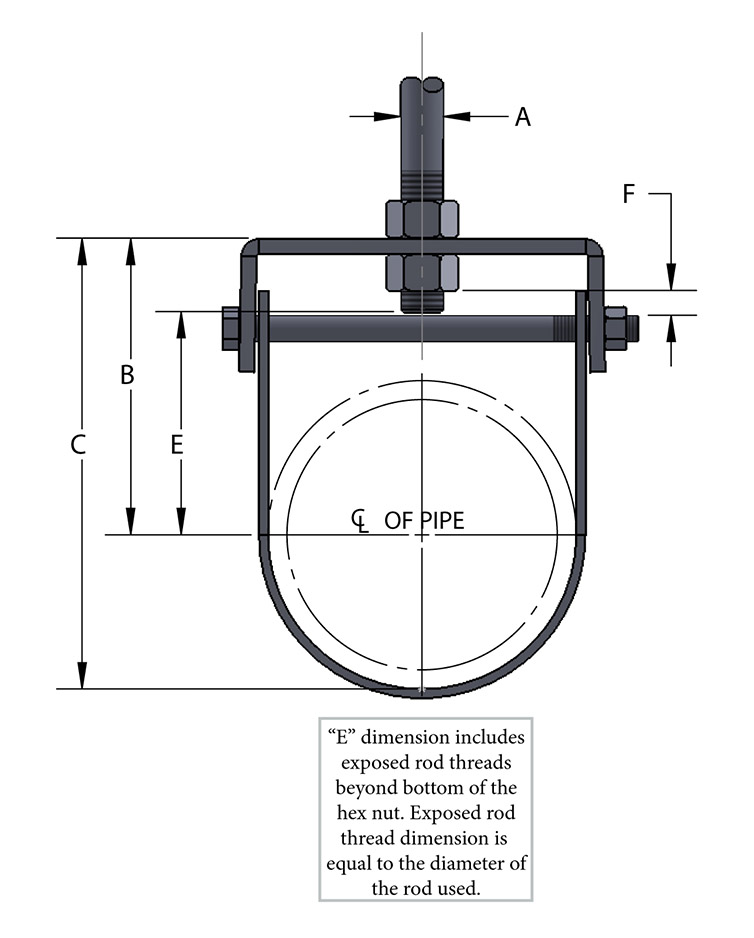

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for the suspension of non-insulated stationary pipe where space is limited.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size, figure number and finish.

Notes

Upper locknut must be tightened securely to assure proper hanger performance.

  • Pipe Size
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
  • Pipe OD
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
    5.563
    6.625
    8.625
  • Material Size Top
    8ga x 1
    8ga x 1
    8ga 1 1/4
    8ga x 1 1/4
    8ga x 1 1/4
    4ga x 1 1/4
    4ga x 1 1/4
    3ga 1 1/2
    3ga x 1 3/4
  • Material Size Bottom
    12ga x 7/8
    12ga x 7/8
    10ga x 1 3/16
    10ga x 1 3/16
    10ga x 1 3/16
    10ga x 1 3/16
    8ga x 1 1/14
    8ga x 1 1/2
    8ga x 1 3/4
  • Bolt
    1/4
    1/4
    5/16
    5/16
    5/16
    3/8
    1/2
    1/2
    5/8
  • A
    3/8
    3/8
    1/2
    1/2
    1/2
    5/8
    5/8
    3/4
    3/4
  • B
    2 1/8
    2 1/2
    2 7/8
    3 5/8
    4 1/16
    4 1/16
    4 7/8
    5 1/2
    6 3/8
  • C
    3 1/8
    3 11/16
    4 3/16
    5 3/8
    6 1/16
    6 5/16
    7 5/8
    8 7/8
    10 7/8
  • E
    1 5/16
    1 11/16
    1 13/16
    2 9/16
    2 15/16
    2 11/16
    3 1/2
    3 7/8
    4 5/8
  • F
    5/16
    7/16
    7/16
    11/16
    3/4
    3/16
    5/8
    7/16
    5/16
  • Wgt Each (lbs)
    0.42
    0.46
    0.78
    0.98
    1.36
    1.38
    2.08
    2.82
    4.34
  • Max REC Load (lbs)
    250
    300
    500
    500
    500
    700
    700
    900
    1000
