Adjustable Clevis Hanger Electro-Galvanized Lightweight

Clevis Hanger, Light Duty – Fig. 110GI

For more product information please call (631) 665-9300

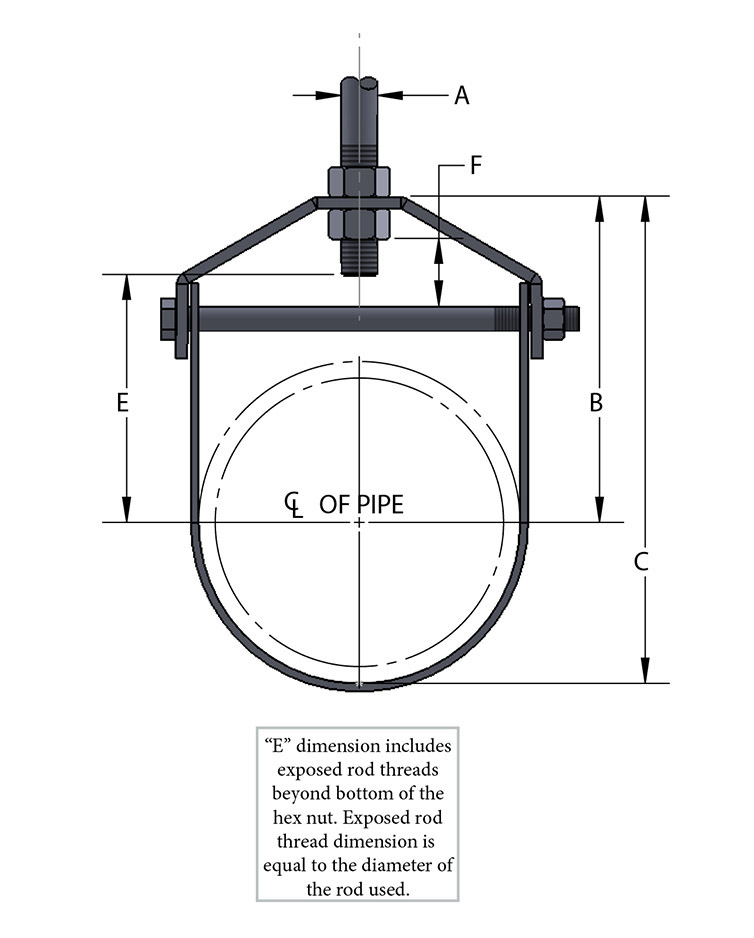

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized or painted.

Service

Designed for the suspension of light stationary pipe or conduit.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 12) and Manufacturers' Standardization
Society MSS SP-58 and SP-69 (Type# 1). Galvanized and coated only.

Ordering

Specify pipe size, figure number and finish.

Notes

Conduit comes in various outside diameters. Verify outside diameter of conduit is equal to outside diameter of schedule 40 steel pipe.

  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
  • Pipe OD
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
  • Material Size Top
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    14ga x 7/8
    14ga x 7/8
    12ga x 1 3/16
    12ga x 1 3/16
    11ga x 1 3/16
    11ga x 1 3/16
  • Material Size Bottom
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    16ga x 7/8
    16ga x 7/8
    14ga x 1 3/16
    14ga x 1 3/16
    14ga x 1 1/16
    14ga x 1 3/16
  • Bolt
    1/4
    1/4
    1/4
    1/4
    1/4
    1/4
    1/4
    1/4
    5/16
    3/8
  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    1/2
  • B
    1 3/4
    1 13/16
    2 1/8
    2 1/2
    2 13/16
    3 5/16
    4 1/2
    4 13/16
    5 15/16
    6 1/16
  • C
    2 1/8
    2 5/16
    2 3/4
    3 1/4
    3 13/16
    4 1/2
    5 5/16
    6 9/16
    7 7/8
    8 5/16
  • E
    1
    1 1/16
    1 5/16
    1 3/4
    2 1/16
    2 9/16
    3 7/16
    3 3/4
    4 7/8
    5
  • F
    1/2
    1/2
    3/4
    1 5/16
    1 1/8
    1 1/4
    2 1/16
    1 7/8
    2 5/8
    2 3/8
  • Wgt Each (lbs)
    0.12
    0.12
    0.12
    0.18
    0.24
    0.26
    0.58
    0.66
    0.82
    0.94
  • Max REC Load (lbs)
    150
    250
    250
    250
    250
    250
    350
    350
    350
    400
