Carbon steel
Zinc Plating

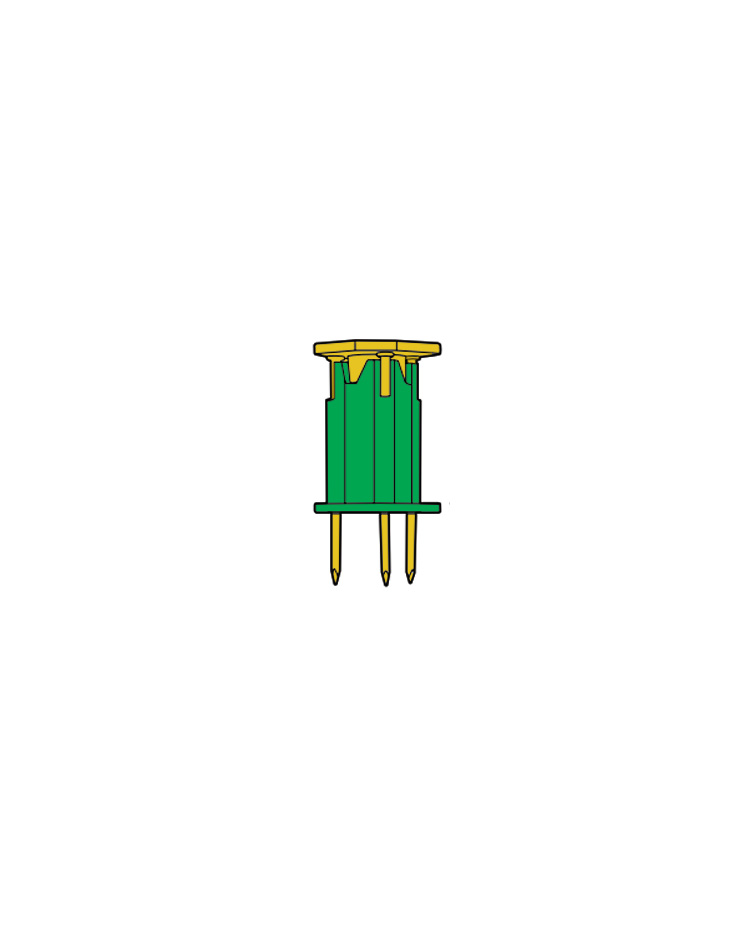

Installed onto wooden forms used to support newly poured concrete floor slabs, roof slabs or walls.
Complies with Underwriters Laboratories (UL Listed) Aslo complies with FM Approvals (Factory Mutual) International Code Council, Evaluation Service (ICC-ES), ESR-3657 for concrete. Approved for seismic and wind loading (all diameters) Tested in accordance with ASTM E 488 and ICC-ES AC446 for use in concrete under the design provisions of ACI 318 (Strength Design method)
Specify bolt or rod size and figure number.
The hex impact plate offers resistance to rotation within the concrete as a steel threaded rod or threaded bolt is being installed.
