Carbon steel
Zinc Plating
Designed for installation in and through composite steel deck used to support newly poured concrete floors or roof slabs.
Complies with Underwriters Laboratories (UL Listed) Aslo complies with FM Approvals (Factory Mutual) International Code Council, Evaluation Service (ICC-ES), ESR-3657 for concrete. Approved for seismic and wind loading (all diameters) Tested in accordance with ASTM E 488 and ICC-ES AC446 for use in concrete under the design provisions of ACI 318 (Strength Design method)
Specify size and figure number.

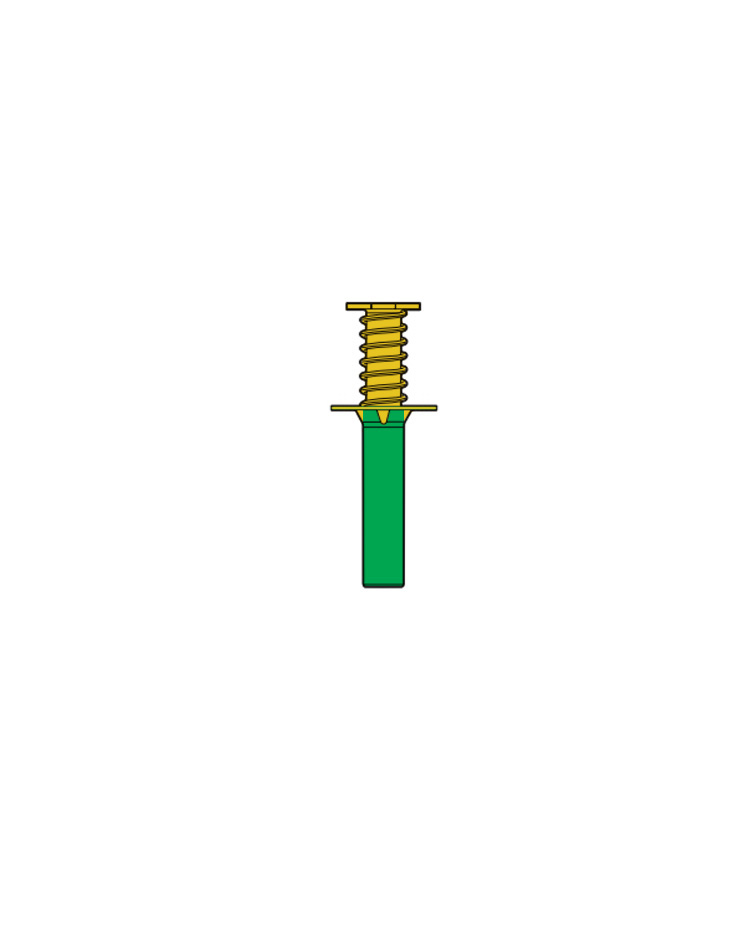

The sleeve prevents sprayed fireproofing material and acoustical dampening products from clogging the internal threads of the insert. It also prevents burying, masking or losing the insert location. A hex impact plate offers resistance to rotation within the concrete as a steel threaded rod is being installed.
