Industrial Threaded Products
Seismic Attachments
-
Fig. 981
(631)665-9300

Universal Swivel Sway Brace Attachment

Fast Attach – Universal Swivel Sway Brace Attachment – Fig. 981

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon Steel, also available in 304 and 316 stainless steel

Finish

Electro-Galvanized

Service

Multi-functional attachment to hanger rod, trapeze rod, structure or braced pipe fitting.

Approvals

Approved by the State of California Office of Statewide Health Planning and Development (OSHPD).

Ordering

Figure number, rod size.

Notes

There are currently no notes for this product.

distribute
  • Part
    Number
    981-S
    981-L
  • Rod Size
    Range
    3/8” thru 35/8”
    3/4” & 7/8”

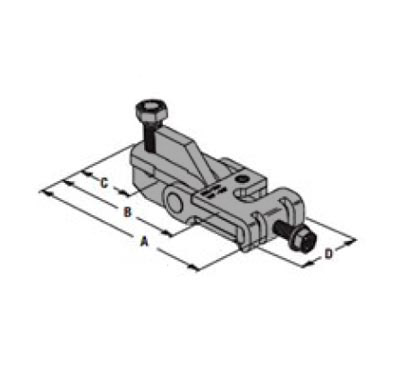

A
B
  • in
    5-1/8
    5-1/8
  • mm
    130.2
    130.2
  • in
    4-1/8
    4-1/8
  • mm
    104.8
    104.8
C
D
  • in
    1-1/4
    1-1/4
  • mm
    31.7
    31.7
  • in
    2-1/4
    2-1/4
  • mm
    57.1
    57.1
  • Max Horizontal
    Design Load
    lbs (kN)
    2015 (8.96)
    2015 (8.96)
  • Approximate
    Weight/100
    lbs. (kg)
    88 (39.9)
    82 (37.2)
