Industrial Threaded Products
Seismic Attachments
-
Fig. 980
(631)665-9300

Universal Swivel Sway Brace Attachment

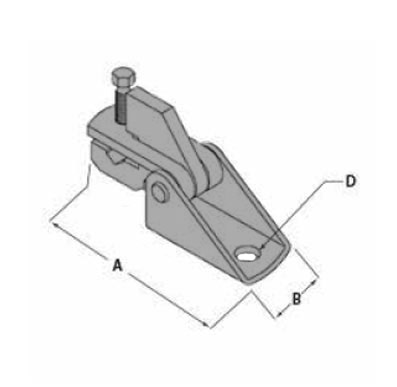

Universal Swivel Sway Brace Attachment – Fig. 980

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon Steel, also available in 304 and 316 stainless steel

Finish

Plain, Electro-Galvanized, or Stainless Steel.

Service

Multi-functional attachment to structure or braced pipe fitting.

Approvals

Underwriters Laboratories Listed in the USA (UL) and Canada (cUL). Approved Factory Mutual Engineering (FM). Approved by the State of California Office of Statewide Health Planning and Development (OSHPD).

Ordering

Figure number and finish.

Notes

The cross reference number for this product is Fig 030

Click Here for cross reference page for this product.
distributedistributedistributedomestic
  • Part
    Number
    3/8
    1/2
    5/8
    3/4
A
B
D*
  • in
    5-1/4
    5-1/4
    5-1/4
    5-1/4
  • mm
    133.3
    133.3
    133.3
    133.3
  • in
    1-7/8
    1-7/8
    1-7/8
    1-7/8
  • mm
    47.6
    47.6
    47.6
    47.6
  • in
    13/32
    17/32
    11/16
    13/16
  • mm
    10.3
    13.5
    17.5
    20.5
  • Max Horizontal
    Design Load (cULus)  lbs/(kN)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
Max Horizontal Design Load (FM) **
30-44 degrees
45-59 degrees
60-74 degrees
75-90degrees
  • Lbs
    1320
    1320
    1320
    1320
  • kN
    5.87
    5.87
    5.87
    5.87
  • Lbs
    1970
    1970
    1970
    1970
  • kN
    8.76
    8.76
    8.76
    8.76
  • Lbs
    2310
    2310
    2310
    2310
  • kN
    10.27
    10.27
    10.27
    10.27
  • Lbs
    2550
    2550
    2550
    2550
  • kN
    11.34
    11.34
    11.34
    11.34

  • Approx Wgt/100
    in (mm)
    149 (67.6)
    148 (67.1)
    147 (66.7)
    146 (66.2)
Chart Notes

* Mounting attachment hole size.

** Installed with 1” or 1-1/4” Schedule 40 brace pipe.
