Seismic Attachments Fig. 909SA
(631)665-9300

No-Thread Swivel Sway Brace Attachment

No-Thread Swivel Sway Brace Attachment – Fig.909SA

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Steel, hardened cone point screw.

Finish

Plain.

Service

The structural component of a sway and seismic bracing system.

Approvals

Underwriters Laboratories Listed in the USA (UL) and Canada (cUL). Approved by the State of California Office of Statewide Health Planning and Development (OSHPD).

Ordering

Figure number, fastener attachment size, and finish.

Notes

There are currently no notes for this product.

distributedistribute
  • Part
    Number
    909SA - 3/8
    909SA - 1/2
    909SA – 5/8
    909SA – 3/4

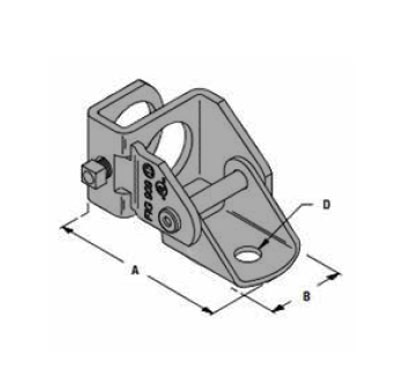

Hole Size D
A
B
  • in
    13/32
    17/32
    11/16
    13/16
  • mm
    10.3
    13.5
    17.5
    20.6
  • in
    6
    6
    6
    6
  • mm
    152.4
    152.4
    152.4
    152.4
  • in
    1-5/8
    1-5/8
    1-5/8
    1-5/8
  • mm
    41.3
    41.3
    41.3
    41.3
  • Maximum
    Design Load
    lbs (kN)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
  • Approximate Wgt/100
    lbs (kg)
    92 (41.7)
    91 (41.3)
    90 (40.8)
    89 (40.4)
