4-Way Sway Brace Attachment

4-Way Sway Brace Attachment – Fig. 907

For more product information please call (631) 665-9300

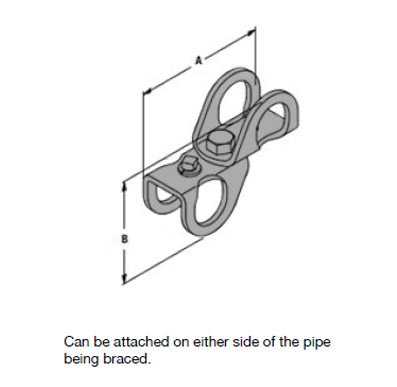

Diagram Notes

Can be attached on either side of the pipe being braced.

Material

Steel, hardened cone (or cup) point set screw.

Finish

Plain.

Service

For bracing pipe against sway and seismic disturbances; functions as a longitude brace connection when attached to a lateral brace pipe. Bracing connection must be positioned as close as physically possible to the braced pipe.

Approvals

Approved by the State of California Office of Statewide Health Planning and Development (OSHPD).

Ordering

Figure number, bracing pipe sizes, and finish.

Notes

There are currently no notes for this product.

distribute
  • Part
    Number
    907 -1 x 1
    907 – 1 x 1-1/4
    1-1/4 x 1-1/4
Brace Pipe Size
A
B
  • in
    1 x 1
    1 x 1-1/4
    1-1/4x1-1/4
  • mm
    25 x 25
    25 x 32
    32 x 32
  • in
    4-3/4
    5-3/16
    5-3/8
  • mm
    120.6
    128.6
    136.5
  • in
    4-3/4
    4-13/16
    5-1/4
  • mm
    120.6
    122.2
    133.1
  • Maximum
    Design Load
    lbs (kN)
    655* (2.91)
    655* (2.91)
    655* (2.91)
  • Approximate Wgt/100
    lbs (kg)
    103 (46.7)
    107 (48.5)
    109 (49.4)

Chart Notes

* Load will accommodate up to 4 “ (100mm) pipe at maximum spacing.
