Universal Swivel Sway Brace Attachment to Steel – Fig. 828

For more product information please call (631) 665-9300
Diagram Notes

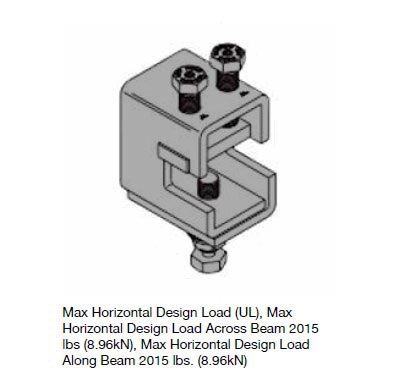

Max Horizontal Design Load (UL), Max Horizontal Design Load Across Beam 2015 lbs (8.96kN), Max Horizontal Design Load Along Beam 2015 lbs. (8.96kN)

Download Submittal
Material

Carbon Steel, also available in 304 and 316 stainless steel

Finish

Plain or Electro-Galvanized

Service

To attach bracing to various types of steel structural members.

Approvals

Underwriters Laboratories Listed in the USA (UL) and Canada (cUL). Factory Mutual (FM) approved.

Ordering

Figure number and finish.

Notes

There are no notes for this product.

distributedistributedistributedomestic
Max Horizontal Design Load (FM)
With Brace Perpendicular to the Beam
Brace Angle (degrees from vertical)
30-44 degrees
45-59 degrees
60-74 degrees
75-90degrees
  • Lbs
    1570
  • kN
    6.98
  • Lbs
    2220
  • kN
    9.87
  • Lbs
    1210
  • kN
    5.38
  • Lbs
    700
  • kN
    3.11
Max Horizontal Design Load (FM)
With Brace Parallel to the Beam
Brace Angle (degrees from vertical)
30-44 degrees
45-59 degrees
60-74 degrees
75-90degrees
  • Lbs
    690
  • kN
    3.07
  • Lbs
    970
  • kN
    4.31
  • Lbs
    1210
  • kN
    5.38
  • Lbs
    1330
  • kN
    5.91
Chart Notes

FM Approved design loads are based on ASD design method.
