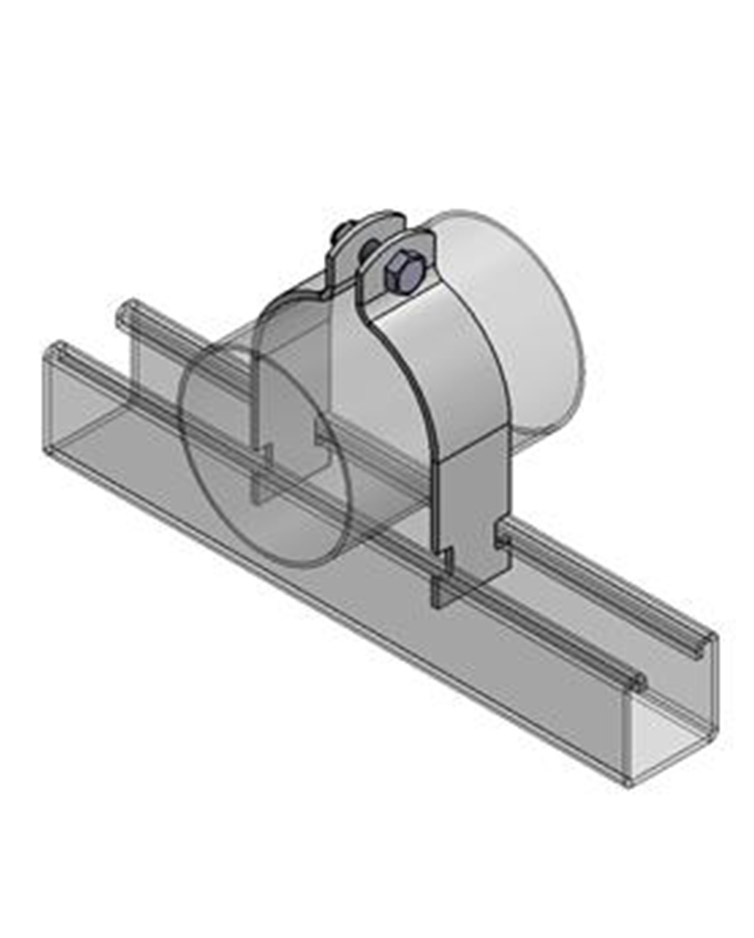

OD Tubing Strut Clamp Assembled – Fig. 8250

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Electro-galvanized carbon steel
Also available in 304 stainless steel.

Pipe Size

1/4”
3/8”
1/2”

5/8”
3/4”
7/8”

1”
1-1/8”
1-1/4”

1-3/8”
1-1/2”
1-5/8”

1-3/4”
1-7/8”
2”

2-1/8”
2-1/4”
2-3/8”

2-1/2”
2-5/8”
2-3/4”

2-7/8”
3”
3-1/8”

3-1/4”
3-3/8”
3-1/2”
3-5/8”
Max Rec Load (lbs)

400
400
400

400
400
400

600
600
600

600
600
600

800
800
800

800
800
800

800
800
800

800
800
800

800
800
800
800
Weight Each (lbs)

0.09
0.09
0.07

0.09
0.13
0.14

0.15
0.16
0.18

0.19
0.20
0.21

0.22
0.22
0.23

0.23
0.25
0.26

0.38
0.38
0.39

0.40
0.42
0.44

0.46
0.48
0.50
0.50

Pipe Size

3-3/4”
3-7/8”
4”

4-1/8”
4-1/4”
4-3/8”

4-1/2”
4-5/8”
4-3/4”

4-7/8”
5”
5-1/8”

5-1/4”
5-3/8”
5-1/2”

5-5/8”
5-3/4”
5-7/8”

6”
6-1/8”
6-1/4”

6-3/8”
6-1/2”
6-5/8”

6-3/4”
6-7/8”
7”
8-3/8”
Max Rec Load (lbs)

1000
1000
1000

1000
1000
1000

1000
1000
1000

1000
1000
1000

1000
1000
1000

1000
1000
1000

1000
1000
1000

1000
1000
1000

1000
1000
1000
1000
Weight Each (lbs)

0.51
0.52
0.52

0.53
0.54
0.55

0.55
0.57
0.58

0.60
0.62
0.64

0.66
0.68
0.70

0.72
0.74
0.76

0.79
0.83
0.87

0.90
0.95
1.02

1.05
1.10
1.16
1.25

Use the following clamps for No-Hub Cast Iron Soil Pipe

No-Hub Cast Iron
Nominal Pipe Size

1-1/2”

2”

3”

4”

5”

6”

8”

10”-12”
Use the Following
Strut Clamp

8200 – 1-1/2”

8200 – 2”

8250 – 3-3/8”

8250 – 4-3/8”

8250 – 5-3/8”

8250 – 6-3/8”

8250 – 8-3/8”

CALL
