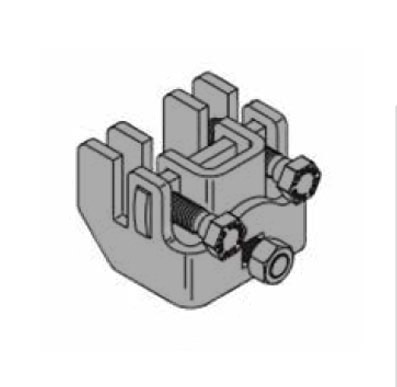

Bar Joist Sway Brace Attachment To Steel – Fig 825

For more product information please call (631) 665-9300
Diagram Notes

Max Horizontal Design Load (UL) 2015 lbs. (8.96kN), UL Listed as Hanger Attachment for 6” (150mm) Pipe at Maximum Spacing

Material

Carbon Steel, also available in 304 and 316 stainless steel

Finish

Plain or Electro-Galvanized

Service

To attach sway brace assemblies and/or hanger assemblies to structural steel members.

Approvals

Underwriters Laboratories Listed in the USA (UL) and Canada (cUL). Factory Mutual (FM) approved. Approved by the State of California Office of Statewide Health Planning and Development (OSHPD).

Ordering

Figure number and finish.

Notes

There are no notes for this product.

distributedistributedistributedomestic
Max Horizontal Design Load (FM)
Lateral – Parallel to the Beam
Maximum 3/8” Thick Flange
30-44 degrees
45-59 degrees
60-74 degrees
75-90degrees
  • Lbs
    990
  • kN
    4.40
  • Lbs
    1360
  • kN
    6.05
  • Lbs
    1670
  • kN
    7.43
  • Lbs
    1860
  • kN
    8.27
Max Horizontal Design Load (FM)
Lateral – Perpendicular to the Beam
Maximum 3/8” Thick Flange
30-44 degrees
45-59 degrees
60-74 degrees
75-90degrees
  • Lbs
    460
  • kN
    2.04
  • Lbs
    630
  • kN
    2.80
  • Lbs
    770
  • kN
    3.42
  • Lbs
    860
  • kN
    3.82
