Heavy Welded Bracket – Fig. 802

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized, hot-dip galvanized or painted.

Service

Recommended for the support of pipe loads up to 3000 lbs Constructed of facing angle iron with 1" space. The bracket provides maximum lateral adjustment when carrying or suspending pipe.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 34), A-A-1192 A (Type# 33) and Manufacturers' Standardization Society MSS SP 58 and SP 69 (Type# 33).

Ordering

Specify size number, figure number and finish.

Notes

There are no notes for this product.

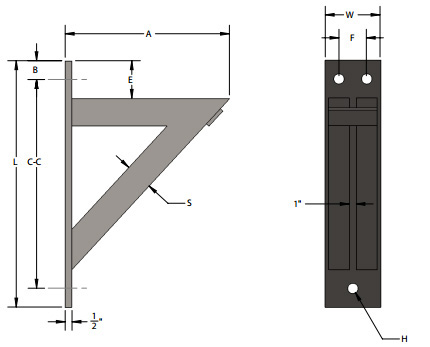

  • Size No.
    1
    2
    3
    4
    5
    6
  • C-C
    15 1/2
    21 1/2
    27 1/2
    33 1/4
    39
    46
  • A
    12
    18
    24
    30
    36
    42
  • F
    one hole
    2 3/4
    2 1/2
    2 1/2
    3 1/2
    3 1/2
  • E
    2 3/4
    2 3/4
    2 3/4
    3
    3
    3 1/2
  • H
    13/16
    15/16
    1 1/16
    1 1/16
    1 1/16
    1 1/16
  • B
    1 1/2
    1 3/8
    1 1/4
    1 1/2
    1 1/2
    2
  • L
    18
    24
    30
    36
    42
    50
  • Angle Size S
    2 x 1 1/2 x 1/4
    2 x 2 x 1/4
    2 1/2 x 2 x 5/16
    2 1/2 x 2 x 5/16
    3 1/2 x 2 1/2 x 3/8
    3 1/2 x 2 1/2 x 3/8
  • W
    4
    5
    5
    5
    6
    6
  • Wgt Each (lbs)
    25.00
    38.00
    69.00
    82.10
    130.00
    155.00
