Carbon steel, also available in 304 and 316 stainless steel.
Plain, electro-galvanized, hot-dip galvanized or painted.

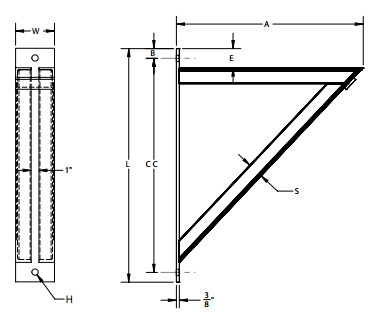

Recommended for the support of pipe loads up to 1500 lbs Constructed of facing angle iron with 1" space. The bracket provides maximum lateral adjustment when carrying or suspending pipe.
Complies with Federal Specification WW-H-171-E (Type# 33), A-A-1192 A (Type# 32) and Manufacturers' Standardization Society MSS SP 58 and SP 69 (Type#32).
Specify size number, figure number and finish.
