Double Expansion Shields – Fig 79

For more product information please call (631) 665-9300

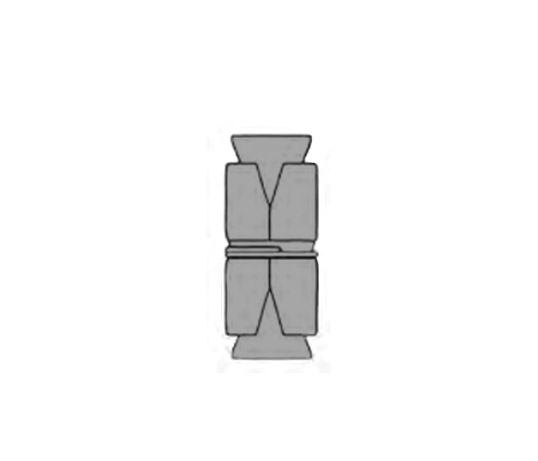

Diagram Notes

The diagram represents pipe sizes for 1” through 4”

Material

Carbon Steel

Finish

Electro-Galvanized.

Service

Can be used for fastening into rock, concrete, brick etc. Eliminates high stress points detrimental in fastening into materials of medium hardness, expands fully and has high gripping power. Ideal for sheer loads or where bolt is subjectto side pressure or vibration. Does not fracture, and permits fastening at any length.

Ordering

Specify bolt or rod size and figure number.

Notes

There are not any notes for this product.

distributedistribute
  • Model
    Number
    NFC 4015
    NFC 4020
    NFC 4025
    NFC 4030
    NFC 4035
    NFC 4040
  • Internal
    Diameter
    1/4
    5/16
    3/8
    1/2
    5/8
    3/4
  • Hole
    Size
    1/2
    5/8
    3/4
    7/8
    1
    1-1/4
  • Anchor
    Length
    1
    1-1/4
    1-1/2
    2
    2-1/4
    2-1/2
3000 PSI
  • Tensile Strentgh
    1,850 lbs
    2,000 lbs
    3,900 lbs
    4,600 lbs
    5,950 lbs
    9,350
  • Shear Strentgh
    2,780 lbs
    3,600 lbs
    4,485 lbs
    9,300 lbs
    13,250 lbs
    16,200 lbs
  • Box / Ctn
    Quantity
    100/1000
    50/500
    50/500
    25/250
    25/125
    10/100
  • Weight
    Per 100
    (lbs)
    4
    12
    14
    18
    25
    54
