Anchor Bolt – Fig. 77

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, Electro-galvanized or painted.

Service

Designed to be embedded in concrete to provide a means to fasten devices to concrete surfaces.

Approvals

There are no approval options for this product.

Ordering

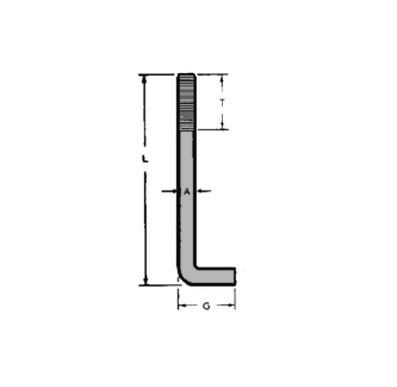

Specify rod size (A): 3/8", 1/2", 5/8" or 3/4", length (L): 8", 10", 12" or 14", thread length (T), figure number and finish.

Notes

"G" dimension is 2 inches unless specified otherwise. Left hand thread can be furnished.
