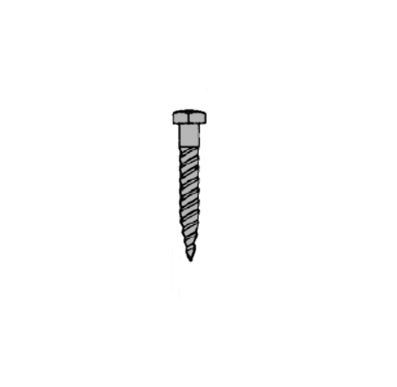

Hex Lag Screw – Fig. 74

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel, also available stainless steel.

Finish

Electro-galvanized, Hot-Dip galvanized

Service

Designed for fastening devices to wood.

Approvals

There are no approval options for this product.

Ordering

Specify fastener diameter, length (excluding head), and figure number.

Notes

There are no notes for this product.

  • Size Dia
    1/4-20
    3/8-16
    1/2-13
    5/8-11
    3/4-10
Wgt Each (lbs)
  • 1 1/2
    0.02
    0.06
    –
    -
    –
  • 2
    0.03
    0.07
    0.14
    0.23
    –
  • 2 1/2
    0.03
    0.08
    0.16
    0.27
    –
  • 3
    0.04
    0.09
    0.19
    0.31
    –
  • 3 1/2
    0.04
    0.10
    0.20
    0.34
    –
  • 4
    0.05
    0.12
    0.23
    0.38
    0.58
  • 4 1/2
    0.06
    0.13
    0.25
    0.41
    0.63
  • 5
    0.06
    0.14
    0.27
    0.45
    0.68
  • 6
    0.07
    0.17
    0.31
    0.52
    0.78
Item Used With
products
Lag Shield
Fig. LSA516
