Long or Short Structural Welding Lug – Fig. 69

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain or electro-galvanized.

Service

Designed to be welded to structural members and used in conjunction with figure #909 forged steel clevis with pin and cotters.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 57), A-A-1192A (Type# 57), and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 57).

Ordering

Specify rod size, figure number, finish and whether long or short lug is required.

Notes

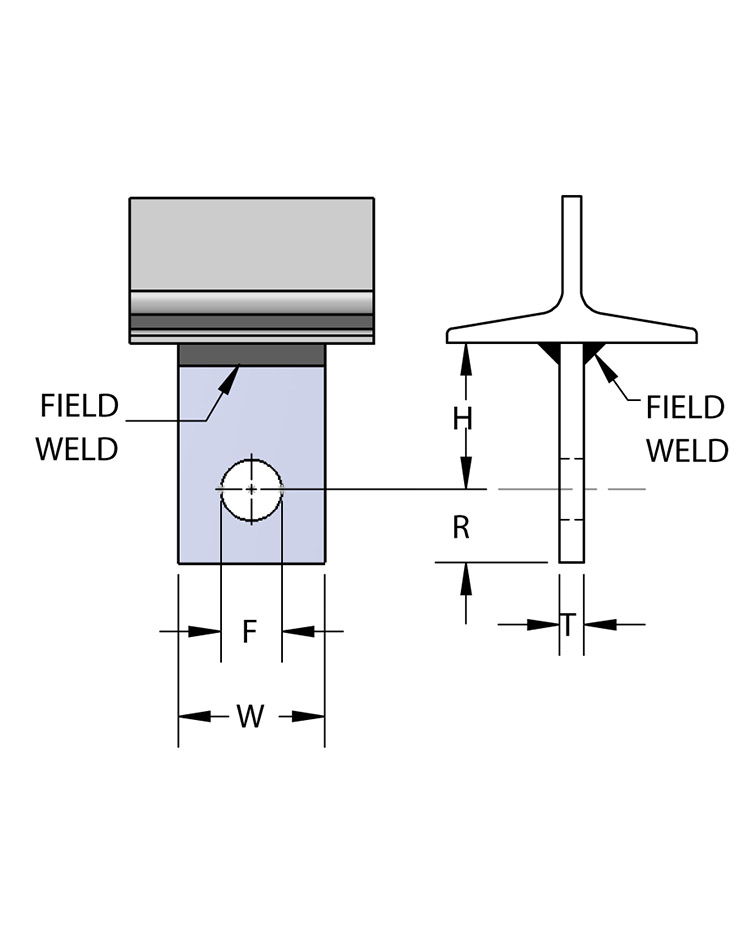

Rod Size A is the assembly rod diameter. Dimension not shown on drawing.

  • Rod Size A
    1/2
    5/8
    3/4
    7/8
    1
    1 1/4
    1 1/2
    1 3/4
    2
    2 1/4
    2 1/2
    2 3/4
    3
    3 1/4
    3 1/2
    3 3/4
  • Pin or Bolt Dia
    5/8
    3/4
    7/8
    1
    1 1/8
    1 3/8
    1 5/8
    1 7/8
    2 1/4
    2 1/2
    2 3/4
    3
    3 1/4
    3 1/2
    3 3/4
    4
  • F
    11/16
    13/16
    15/16
    1 1/8
    1 1/4
    1 1/2
    1 3/4
    2
    2 3/8
    2 5/8
    2 7/8
    3 1/8
    3 3/8
    3 5/8
    3 7/8
    4 1/8
  • R
    1 1/4
    1 1/4
    1 1/4
    1 1/4
    1 1/2
    2
    2 1/2
    2 1/2
    3
    3
    4
    4
    4
    4 1/2
    4 1/2
    4 1/2
  • T
    1/4
    1/4
    3/8
    3/8
    1/2
    5/8
    3/4
    3/4
    3/4
    3/4
    1
    1
    1
    1
    1 1/2
    1 3/4
  • W
    2 1/2
    2 1/2
    2 1/2
    2 1/2
    3
    4
    5
    5
    6
    6
    8
    8
    8
    9
    9
    9
Max Load
  • 650 degrees F
    1350
    2160
    3230
    4480
    5900
    9500
    13800
    18600
    24600
    32300
    39800
    49400
    60100
    71900
    84700
    98500
  • 750 degrees F
    1057
    1692
    2530
    3508
    4620
    7440
    10807
    14566
    19265
    25295
    31169
    38687
    47066
    56307
    66331
    77139
Fig 69S Short
  • H
    1 1/2
    1 1/2
    1 1/2
    2
    2
    3
    3
    3
    4
    4 1/2
    4 1/2
    4 1/2
    5
    5
    6
    6
  • Weight lbs
    0.48
    0.41
    0.60
    0.71
    1.20
    3.00
    4.80
    4.70
    7.20
    7.60
    15.50
    15.10
    16.00
    18.90
    31.30
    35.90
Fig 69L Long
  • H
    3
    3
    3
    3
    3
    4
    4 1/2
    4 1/2
    4 1/2
    -
    -
    -
    -
    -
    -
    -
  • Weight lbs
    0.75
    0.68
    1.00
    0.98
    1.60
    3.70
    6.40
    6.30
    8.80
