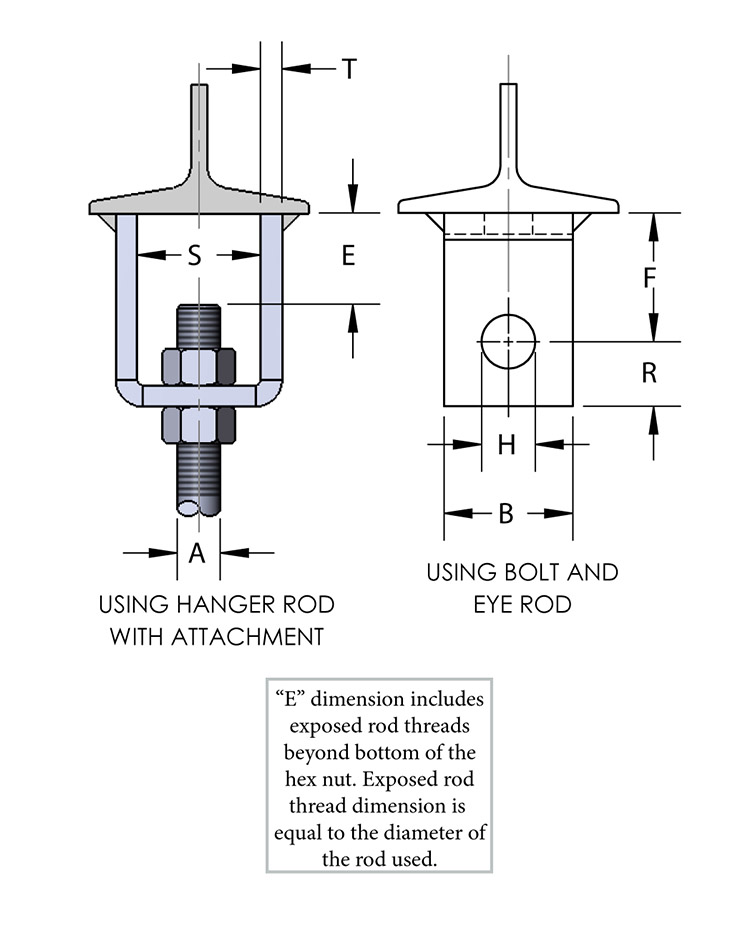

"E" dimension includes exposed rod threads beyond bottom of the hex nut. Exposed rod thread dimension is equal to the diameter of the rod used.
Carbon steel, also available in 304 and 316 stainless steel.
Plain, painted or electro-galvanized.
Designed for the attachment of hanger rod to the bottom flange of steel beams where heavy loads and large hanger rod sizes are required.
Complies with Federal Specification WW-H-171-E (Type# 22), A-A-1192A (Type# 22), and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 22).
Specify rod size, figure number and finish.
Can be welded in either the upright or inverted position when ordered with hardware. 3/8 to 11/8 supplied with bolts and nuts. 1 1/4 and larger supplied with pins and cotters.
