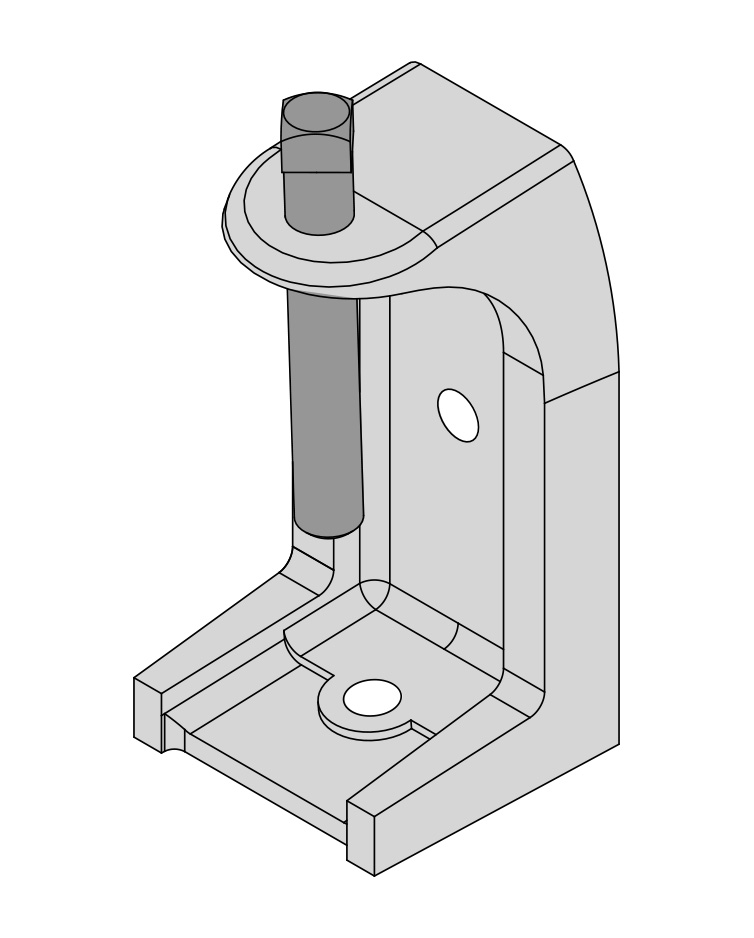

Extra-Wide Mouth Galvanized Iron Beam Clamp – Fig. 63EWM

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Cast iron

Finish

Electro-galvanized.

Service

Designed to attach hanger rod to beam or framework. Rod tap on both bottom and back of clamp.

Approvals

In compliance with CUL, UL

Ordering

Specify rod size and figure number.

Notes

There are no notes for this product.

  • Rod Size
    5/16-18 x 2-1/2
    3/8-16 x 4
    1/2-13 x 2-1/2
  • Flange Thickness
    up to 3"
    up to 3"
    up to 3"
  • Jaw Opening
    3-1/8"
    3-1/8"
    3-1/8"
  • Threaded Holes
    1/4-20
    3/8-16
    1/2-13
  • Max Load Capacity (lbs)
    200
    300
    400
  • Testing Load Capacity (lbs)
    600
    900
    1200
  • Weight Each (lbs)
    0.9110
    1.0500
    1.5000
