Wide-Mouth Top Beam Clamp – Fig. 61

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Cast iron body with hardened steel set screw.

Finish

Plain or electro-galvanized.

Service

Designed to attach hanger rod to the top flange of a beam or bar.

Approvals

U.L. - U.L.C. listed 3/8 and 1/2 (1/2 for 4" IPS max). FM approved for 3/8 only. Complies with Federal Specification A-A-1192A (Type# 19) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 19).

Ordering

Specify rod size, figure number and finish.

Notes

See MSS SP-69 for proper set screw torque recommendations. Order 61D for domestic.

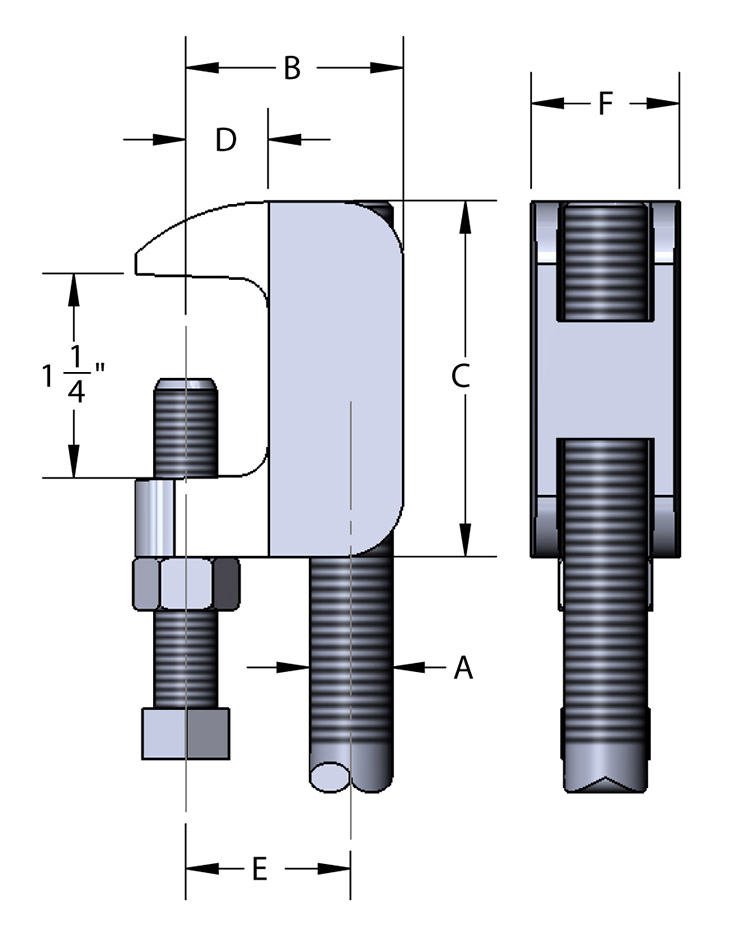

Size A

3/8-16
1/2-13
5/8-11
3/4-10
Set Screw

3/8-16
3/8-16
3/8-16
3/8-16
B

1 3/8
1 3/8
1 7/8
1 7/8
C

2
2
2 3/8
2 3/8
D

1/2
1/2
5/8
5/8
E

1
1
1 3/8
1 3/8
F

7/8
7/8
1 1/4
1 1/4
Max Pipe Size

4
4
5
6
Wgt Each (lbs)

0.55
0.56
0.66
0.83
Max REC Load (lbs)

400
500
850
900

Wide-Mouth Top Beam Clamp – Fig. 61

Size A

Set Screw

B

C

D

E

F

Max Pipe Size

Wgt Each (lbs)

Max REC Load (lbs)
