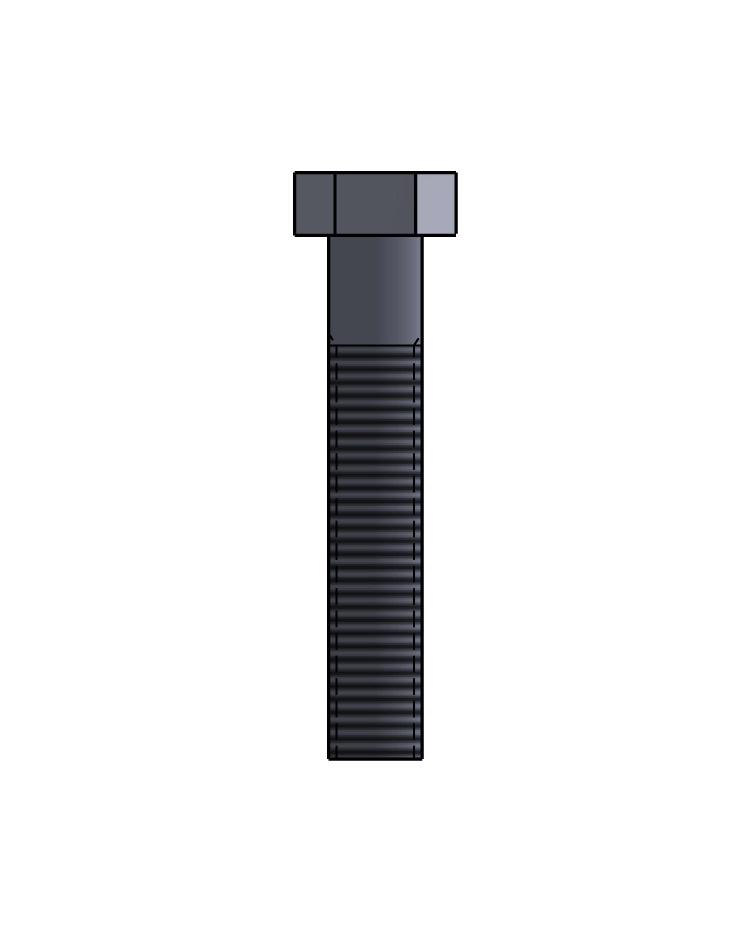

Hex Head Bolt – Fig. 58

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for use as a fastening device.

Approvals

There are no approval options for this product.

Ordering

Specify rod size, length, figure number and finish.

Notes

Also available in stainless steel. Available packaged or in bulk.

Size A

3/8-16
1/2-13
5/8-11

3/4-10
7/8-9
1-8

1 1/8-7
1 1/4-7
1 1/2-6

Wgt Each (lbs)

2

0.072
0.144
0.228

0.351
0.511
0.701

-
-
–
2 1/4

0.080
0.157
0.250

0.382
0.550
0.748

-
-
–
2 1/2

0.087
0.171
0.271

0.413
0.592
0.799

-
-
–
2 3/4

0.095
0.185
0.293

0.445
0.634
0.854

-
-
–
3

0.103
0.199
0.314

0.476
0.677
0.910

1.240
1.610
2.460
3 1/4

0.111
0.213
0.336

0.507
0.719
0.965

-
-
–
3 1/2

0.119
0.226
0.358

0.538
0.761
1.020

1.370
1.780
2.690
3 3/4

0.126
0.240
0.379

0.569
0.803
1.075

-
-
–
4

0.134
0.254
0.401

0.600
0.846
1.130

1.510
1.950
2.940
4 1/2

0.150
0.282
0.444

0.662
0.930
1.241

1.650
2.120
3.190
5

0.165
0.309
0.487

0.724
1.015
1.351

1.780
2.290
3.440
5 1/2

0.181
0.337
0.530

0.787
1.100
1.462

1.920
2.450
3.690
6

0.196
0.364
0.573

0.849
1.184
1.572

2.050
2.620
3.940
