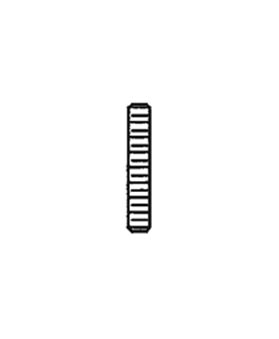

Continuous Threaded Rod – Fig. 54

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized, hot-dip galvanized.

Service

Useful in applications for attaching hangers to structural attachments.

Approvals

There are no approval options for this product.

Ordering

Specify rod size, figure number and finish.

Notes

Stainless steel rod is recommended for applications where protection from corrosive environments is needed.

  • Size A
    1/4-20
    3/8-16
    1/2-13
    5/8-11
    3/4-10
    7/8-9
    1-8
    1 1/8-7
    1 1/4-7
    1 1/2-6
  • Wgt/Ft (lbs)
    0.12
    0.29
    0.54
    0.83
    1.25
    1.70
    2.23
    2.81
    3.54
    5.12
  • Max Rec Load (lbs) 650 degrees F
    240
    610
    1130
    1810
    2710
    3770
    4960
    6230
    8000
    11630
  • Max Rec Load (lbs) 750degrees F
    210
    540
    1010
    1610
    2420
    3360
    4420
    5560
    7140
    10370
