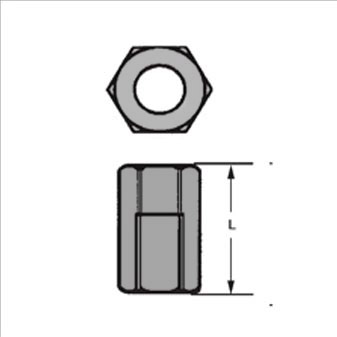

Reducing Rod Coupling – Fig. 51R

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Electro-galvanized.

Service

Designed for connecting two lengths of rod with different diameters.

Approvals

There are no approval options for this product.

Ordering

Specify rod sizes and figure number.

Notes

Also available in skip sizes.

  • Size
    3/8-16 x 1/4-20
    1/2-13 x 3/8-16
    5/8-11 x 1/2-13
    3/4-10 x 5/8-11
    7/8-9 x 3/4-10
    1-8 x 7/8-9
  • Length L
    1
    1 1/4
    1 1/4
    1 1/2
    1 3/4
    2
  • Hex Width
    1/2
    5/8
    13/16
    1
    1 1/4
    1 3/8
  • Wgt Each (lbs)
    0.04
    0.07
    0.14
    0.21
    0.40
    0.55
  • Max Rec Load (lbs)
    225
    610
    1130
    1810
    2710
    3770
