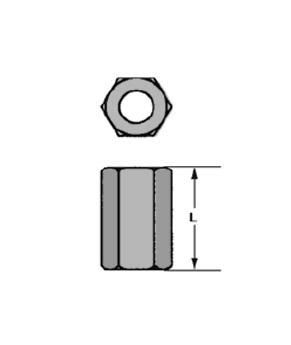

Rod Coupling – Fig. 51

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain or electro-galvanized.

Service

Designed for connecting two lengths of rod with equal diameters.

Approvals

There are no approval options for this product.

Ordering

Specify rod size, figure number and finish.

Notes

Stainless steel rod couplings are recommended for applications where protection from corrosive environment is needed.

  • Size A
    1/4-20
    3/8-16
    1/2-13
    5/8-11
    3/4-10
    7/8-9
    1-8
    1 1/8-7
    1 1/4-7
    1 1/2-6
  • Length L
    7/8
    1 3/4
    1 3/4
    2 1/8
    2 1/4
    2 1/2
    2 3/4
    3
    3
    3 1/2
  • Hex Width
    3/8
    5/8
    11/16
    13/16
    1
    1 1/4
    1 3/8
    1 1/2
    1 5/8
    2
  • Wgt Each (lbs)
    0.02
    0.11
    0.10
    0.18
    0.28
    0.55
    0.71
    0.86
    0.95
    1.88
  • Max Rec Load (lbs)
    230
    610
    1130
    1810
    2710
    3770
    4960
    6230
    8000
    11630
