Eye Socket – Fig. 47

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Cast iron.

Finish

Plain, electro-galvanized, copper plated.

Service

Designed for attaching hanger rod to various types of hangers.

Approvals

Complies with Federal Specification WWH-171E (Type# 16), A-A-1192A (Type# 16), Manufacturers' Standardization Society SP-58 and MSS SP-69 (Type# 16).

Ordering

Specify rod size, figure number and finish.

Notes

There are no notes for this product.

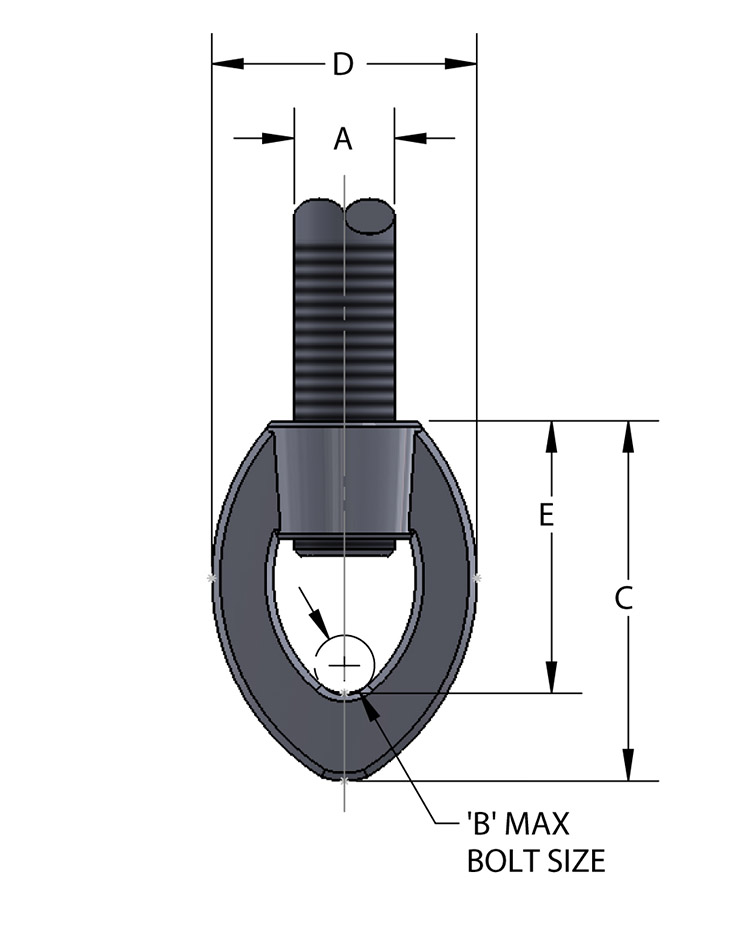

  • Size A
    1/4-20
    3/8-16
    1/2-13
    5/8-11
    3/4-10
    7/8-9
  • Pipe Size
    3/8
    1/2 to 2
    2 1/2 to 3 1/2
    4 to 5
    6
    8
  • B
    1/4
    1/4
    1/4
    3/8
    1/2
    1/2
  • C
    1 3/8
    1 9/16
    1 7/8
    2 1/4
    2 7/16
    2 3/4
  • D
    7/8
    1 1/8
    1 1/4
    1 9/16
    1 7/8
    1 1/8
  • E
    1 1/8
    1 1/4
    1 1/2
    1 3/4
    2 1/16
    2 5/16
  • Wgt Each (lbs)
    0.05
    0.07
    0.14
    0.22
    0.32
    0.53
  • Max REC Load (lbs)
    230
    610
    1000
    1400
    2200
    2300
