Adjustable Pipe Saddle Support with Threaded Coupling – Fig. 421

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel (304 and 316 stainless steel).

Finish

Plain, electro-galvanized or painted.

Service

Designed to be used in conjunction with a base stand to support pipe running close to the floor.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size, figure number and finish. Base stand can be ordered separately (requires accurate center line of pipe to floor dimension).

Notes

There are no notes for this product.

  • Pipe Size
    2
    3
    4
    5
    6
    8
    10
    12

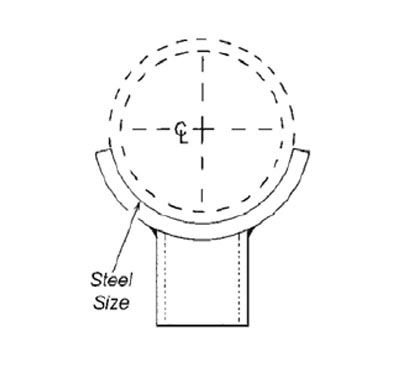

  • Steel Size
    3/8 x 2
    3/8 x 2 1/2
    3/8 x 3
    3/8 x 3
    1/2 x 3 1/2
    1/2 x 3 1/2
    1/2 x 4
    1/2 x 4
  • Pipe Size, Threaded Coupling
    1 1/4
    1 1/2
    2
    2
    2 1/2
    2 1/2
    3
    3
  • Wgt Each (lbs)
    1.35
    2.45
    3.63
    4.30
    7.03
    8.53
    13.04
    15.07
