Pipe Saddle Support – Fig. 420

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel (304 and 316 stainless steel).

Finish

Plain, electro-galvanized or painted.

Service

Designed to be used in conjunction with a base stand to support pipe running close to the floor.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 37), A-A-1192 A and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 36).

Ordering

Specify size, figure number and finish. Base stand ordered separately (requires accurate center line of pipe to floor dimension). Base stand can be ordered separately.

Notes

There are no notes for this product.

  • Pipe Size
    2
    3
    4
    5
    6
    8
    10
    12
  • Steel Size
    1 1/2 x 3/8
    1 1/2 x 3/8
    2 x 3/8
    2 x 3/8
    2 x 1/2
    2 x 1/2
    3 x 1/2
    3 x 1/2

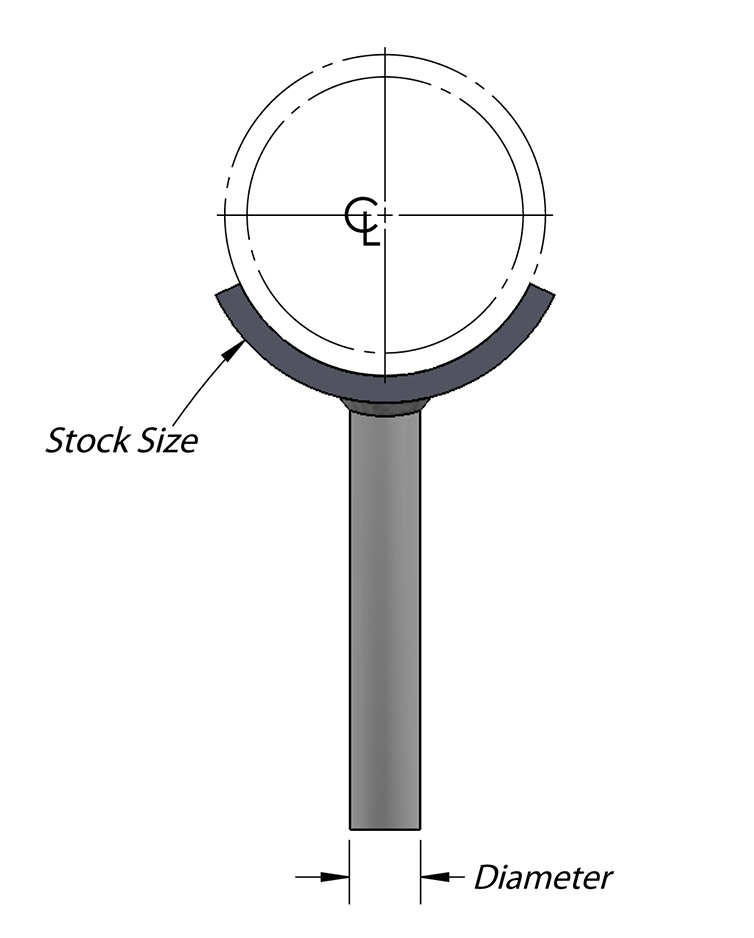

  • Dia. & Length of Stem
    7/8 x 6
    7/8 x 6
    1 x 6
    1 x 6
    1 1/4 x 6
    1 1/4 x 6
    1 1/2 x 6
    1 1/2 x 6
  • Wgt Each (lbs)
    1.57
    1.85
    2.70
    3.14
    4.90
    5.75
    9.88
    11.40
