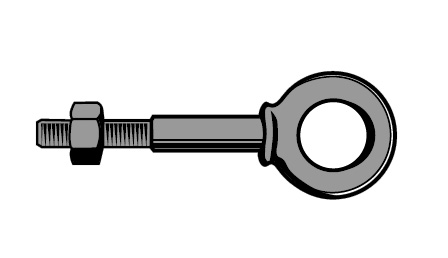

Shoulder Eyebolt – Fig. 26DFS

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Drop Forged, Furnished with standard hex nuts

Finish

Plain, galvanized, or stainless steel.

Service

There are not any service notes.

Approvals

There are not any approvals

Ordering

Specify size, figure number and finish.

Notes

See Warnings for proper use - Failure to follow the instructions for use below and these Warnings may cause death or serious injury. - Rated capacity is drastically reduced when loading at any angle. - Follow all Warnings, Use and Application Instructions as supplied by the Manufacturer. - Loading must never be made at an angle greater than 45° from bolt centerline. - At any angle of 45°, rated capacity is reduced to 1/4 of the tabulated value. - Loads should always be applied to liftng eyes in the plane of the eye, not at some angle to this plane. - Shoulder lifting eyes must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially. A steel washer or spacer may be required for proper seating.

Galvanized
  • Shank Diameter and Length
    1/4 x 2
    1/4 x 4
    5/16 x 2-1/4
    5/16 x 4-1/4
    3/8 x 2-1/2
    3/8 x 4-1/2
    1/2 x 3-1/4
    1/2 x 6
    5/8 x 4
    5/8 x 6
    3/4 x 4-1/2
    3/4 x 6
    7/8 x 5
    7/8 x 8
    1 x 6
    1 x 9
    1-1/2 x 15
  • Length of Thread
    1.5
    2.5
    1.5
    2.5
    1.5
    2.5
    1.5
    3
    2
    3
    2
    3
    2.5
    4
    3
    4
    6
  • Eye Inside Dimension
    0.50
    0.50
    0.62
    0.62
    0.75
    0.75
    1.00
    1.00
    1.25
    1.25
    1.50
    1.50
    1.75
    1.75
    2.00
    2.00
    2.50
  • Eye Outside Dimension
    0.87
    0.87
    1.12
    1.12
    1.37
    1.37
    1.75
    1.75
    2.25
    2.25
    2.75
    2.75
    3.25
    3.25
    3.75
    3.75
    5.50
  • Weight Each
    0.07
    0.10
    0.12
    0.17
    0.21
    0.28
    0.42
    0.59
    0.83
    1.00
    1.54
    1.77
    2.23
    2.66
    3.56
    4.20
    14.25
  • Working Load Limit
    500
    500
    800
    800
    1,200
    1,200
    2,200
    2,200
    3,500
    3,500
    5,200
    5,200
    7,200
    7,200
    10,000
    10,000
    15,200
Stainless Steel
  • Shank Diameter and Length
    1/4 x 2
    1/4 x 4
    5/16 x 2-1/4
    5/16 x 4-1/4
    3/8 x 2-1/2
    3/8 x 4-1/2
    1/2 x 3-1/4
    1/2 x 6
    5/8 x 4
    5/8 x 6
    3/4 x 4-1/2
    3/4 x 6
  • Length of Thread
    1.5
    2.5
    1.5
    2.5
    1.5
    2.5
    1.5
    3
    2
    3
    2
    3
  • Eye Inside Dimension
    0.50
    0.50
    0.62
    0.62
    0.75
    0.75
    1.00
    1.00
    1.25
    1.25
    1.50
    1.50
  • Eye Outside Dimension
    0.87
    0.87
    1.12
    1.12
    1.37
    1.37
    1.75
    1.75
    2.25
    2.25
    2.75
    2.75
  • Weight Each
    0.09
    0.12
    0.16
    0.17
    0.24
    0.30
    0.54
    0.69
    1.04
    1.25
    1.65
    1.80
  • Working Load Limit
    460
    460
    780
    780
    1,160
    1,160
    2,150
    2,150
    3,440
    3,440
    5,140
    5,140
