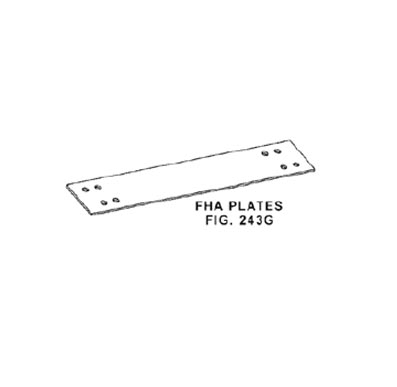

Nail Plate (FHA) – Fig. 243

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel.

Finish

Pre-galvanized.

Service

Designed to protect piping and electrical lines that pass through metal framing from damage due to penetration from drywall or other fasteners. Attach with metal framing screws.

Approvals

There are no approval options for this product.

Ordering

Specify size, gauge and figure number.

Notes

There are no notes for this product.

243G Series

Gauge

18
18
18

18
18
18

18
18
16

16
16
16

13
13
13
13
Size Width x Length

1 1/2 x 9
1 1/2 x 12
1 1/2 x 18

1 1/2 x 24
3 x 6
3 x 9

3 x 12
3 x 18
1 1/2 x 9

1 1/2 x 12
1 1/2 x 18
1 1/2 x 24

1 1/2 x 9
1 1/2 x 12
1 1/2 x 18
1 1/2 x 24
Wgt Each (lbs)

0.180
0.250
0.380

0.500
0.250
0.380

0.520
0.780
0.240

0.320
0.480
0.640

0.350
0.470
0.700
0.980

Nail Plate (FHA) – Fig. 243

Gauge

Size Width x Length

Wgt Each (lbs)
