Purlin Clamp – Fig. 24

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Cast Iron.

Finish

Plain, electro-galvanized.

Service

Designed for use with large-lip steel Purlin beams.

Approvals

There are currently no approvals for this product.

Ordering

Specify figure number and finish.

Notes

See MSS SP-69 for proper set screw torque recommendations.

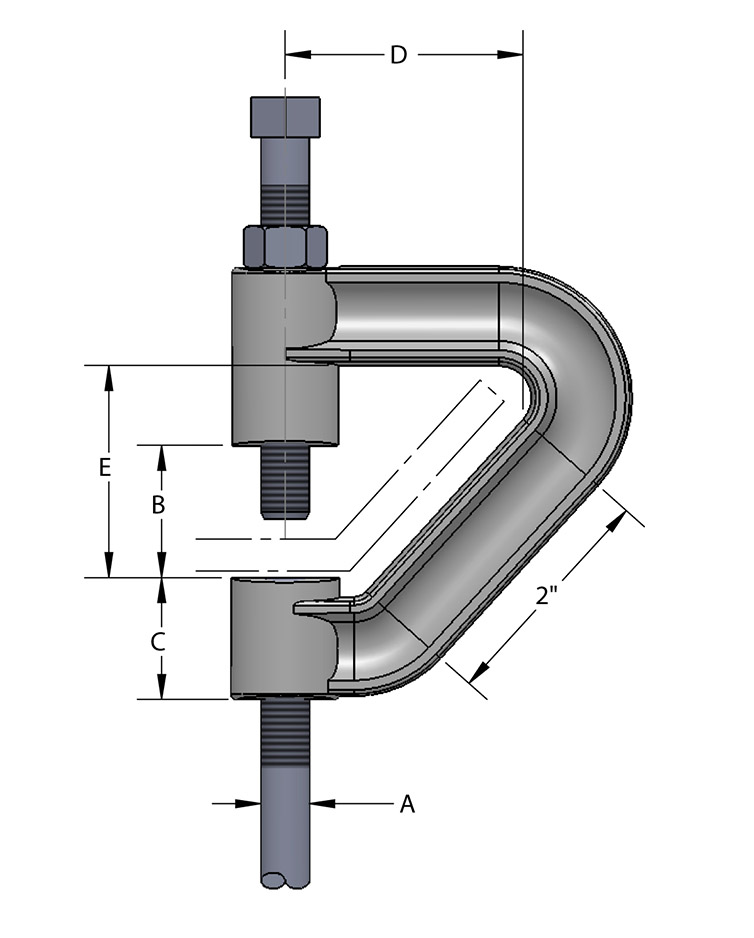

  • Size A
    3/8-16
  • Set Screw
    3/8-16 x 3
  • B
    1
  • C
    1
  • D
    1 7/8
  • E
    1 5/8
  • Wgt Each (lbs)
    0.92
  • Max Rec Load (lbs)
    400
