Malleable iron, also available in 304 and 316 stainless steel.
Plain, electro-galvanized.

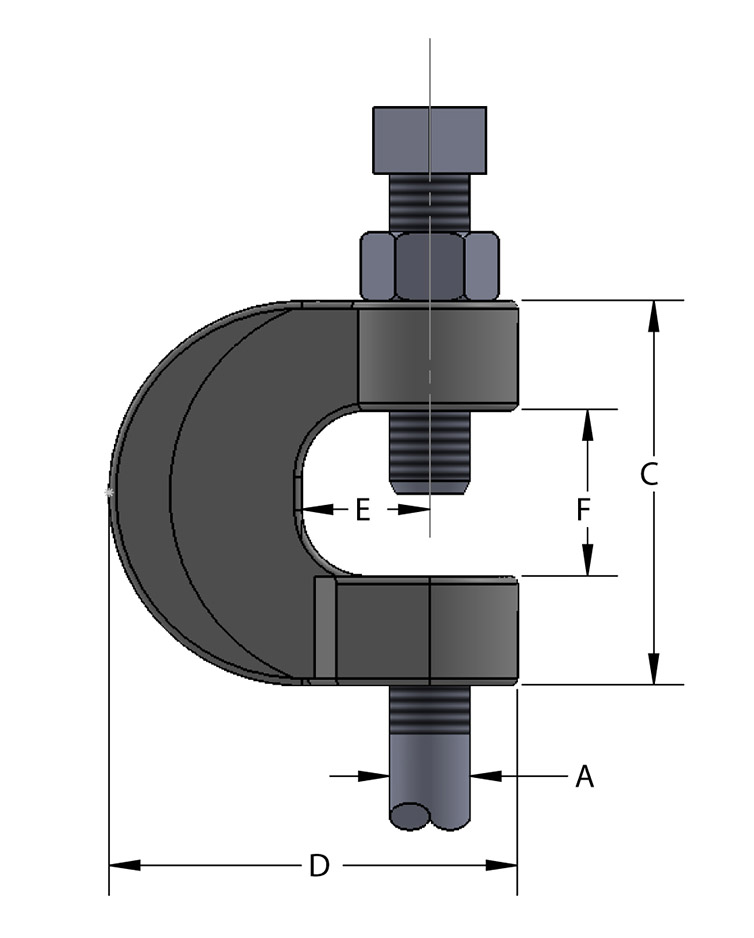

Designed for attaching hanger rod to the bottom flange of a beam.
U.L. - U.L.C. listed and FM approved 3/8 and 1/2 ONLY. Complies with Federal Specification WW-H-171-E (Type# 23), A-A-1192 A (Type# 23) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 23).
Specify rod size, figure number and finish.
See MSS SP-69 for proper set screw torque recommendations.
