Two Hole Pipe Strap, 304 Stainless Steel, IPS – Fig. 231SS

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Type 304 stainless steel.

Finish

There are no finishing options for this product.

Service

Designed as a light duty support for schedule 40/80 sized pipe. Attaches directly to horizontal or vertical structural member.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size or o.d. tubing size and figure number.

Notes

Stainless steel hangers are recommended for applications where protection from corrosive environment is needed.

Pipe Size

1/4 OD
1/4
3/8 OD

3/8
1/2 OD
1/2

3/4 OD
3/4
1 OD

1
1 1/4
1 1/2

2
2 1/2
3
4
6
Pipe OD

0.250
0.540
0.375

0.675
0.500
0.840

0.750
1.050
1.000

1.315
1.660
1.900

2.375
2.875
3.500
4.500
6.625
Material Size

16ga x 7/8
16ga x 7/8
16ga x 7/8

16ga x 7/8
16ga x 7/8
16ga x 7/8

16ga x 7/8
16ga x 7/8
16ga x 7/8

16ga x 7/8
13ga x 3/4
13ga x 3/4

13ga x 3/4
13ga x 3/4
13ga x 3/4
11ga x 1
8ga x 1 1/4

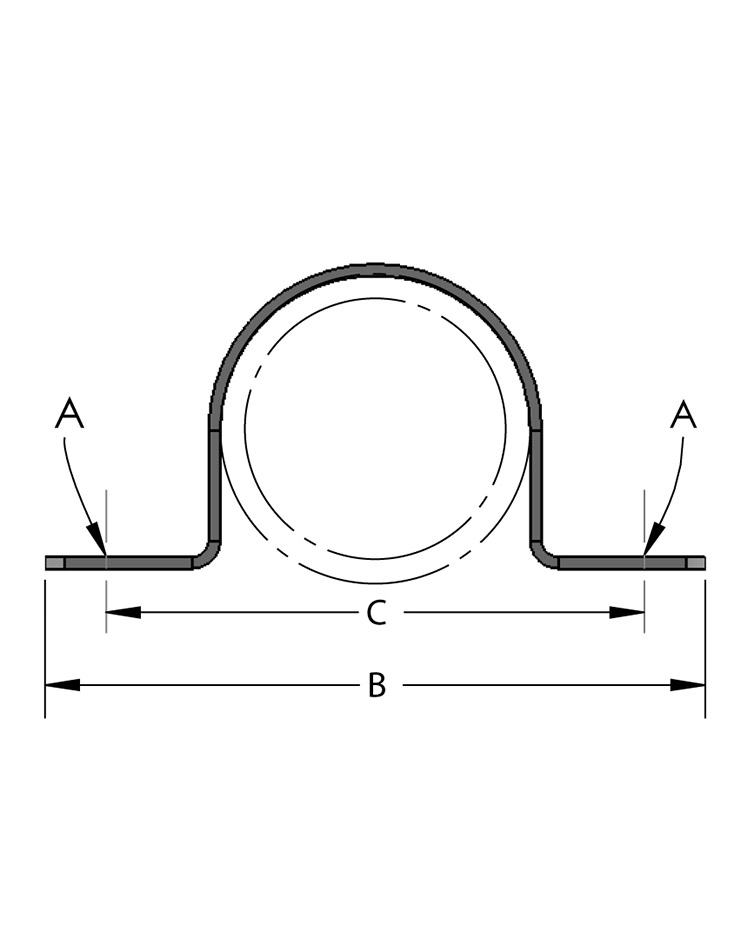

Hole Size A

9/32
9/32
9/32

9/32
9/32
9/32

9/32
9/32
9/32

9/32
9/32
9/32

9/32
11/32
11/32
7/16
7/16
B

2 9/16
2 3/4
2 5/8

3
2 13/16
3 1/8

3
3 3/8
3 1/4

3 7/8
4 1/4
4 7/16

5
5 1/4
6
7 1/4
11
C

1 9/16
1 3/4
1 5/8

2
1 13/16
2 1/8

2
2 3/8
2 1/4

2 7/8
3 1/4
3 7/16

4
4 1/4
5
6 1/4
9 7/16
Wgt Each (lbs)

0.030
0.035
0.030

0.045
0.035
0.045

0.040
0.060
0.050

0.060
0.105
0.115

0.135
0.165
0.190
0.405
1.150
